MTL005

Features:

General
· Auto configuration of sampling clock frequency, phase, H/V center, as well as white balance.
· Auto detection of present or non-present or over range sync signals and their polarities.
· Composite sync separation and odd/even field detection of interlaced video.
· No external memory required.
· On-chip output PLL provide clock frequency fine-tune (inverse, duty cycle and delay).
· Serial 2-wire I²C host interface.
· 3.3V supplier, 5V I/O tolerance in 128-pin PQFP package.
Input Processor
· Single RGB (24-bit) input rates up to 100MHz.
· Support both non-interlaced and interlaced RGB graphic input signals.
· YUV 4:2:2 or YUV 4:1:1 (CCIR601/CCIR656) interlaced video input.
· Glue-free connection to Philips SAA711x digital video decoder.
· Built-in YUV to RGB color space converter.
· Compliant with digital LVDS/PanelLink TMDS input interface.
· PC input resolution up to XGA 1024x768 @85Hz.
Video Processor
· Independent programmable Horizontal and Vertical scaling up ratios from 1 to 32
· Flexible de-interlacing unit for digital YUV video input data.
· Zoom to full screen resolution of de-interlaced YUV video data stream.
· Built-in programmable gain control for white balance alignments.
· Built-in programmable 8-bit gamma correction table.
· Built-in programmable temporal color dithering.
· Built-in programmable interpolation look-up table.
· Support smooth panning under viewing window change.
Output Processor
· Single pixel (18/24-bit) or Dual pixel (36/48-bit) per clock digital RGB output.
· Built-in output timing generator with programmable clock and H/V sync.
· Support VGA/SVGA/XGA display resolution.
· Overlay input interface with external OSD controller.
· Double scan capability for interlaced input.

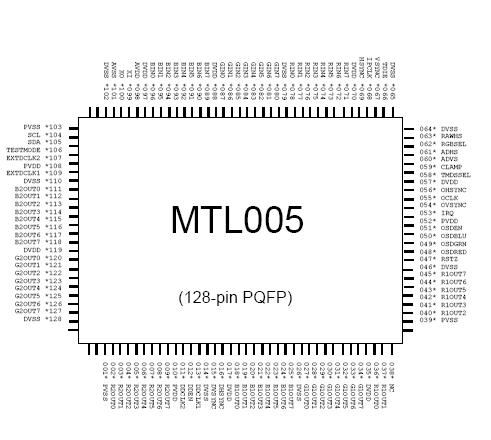

Pinout




Description

The MTL005 Flat Panel Display (FPD) Controller is a low-cost input format converter for TFT-LCD Monitor or LCD TV application which accepts 15-pin D-sub RGB graphic signals (through ADC), YUV signals from digital video decoder or digital RGB graphic signals from PanelLink TMDS receiver. MTL005 comprises a RGB/YUV input processor, video scaling up processor, OSD input interface and output display processor in 128-pin PQFP.
