MTL004

Features:

General
· Auto configuration of sampling clock frequency, phase, H/V center, as well as white balance.
· Auto detection of present or non-present or over range sync signals and their polarities.
· Composite sync separation and odd/even field detection of interlaced video.
· No external memory required.
· On-chip output PLL provide clock frequency fine-tune (inverse, duty cycle and delay).
· Selection of serial 2-wire I²C or 3-wire serial or 8-bit direct host interface to 8-bit MCU.
· 3.3V supplier, 5V I/O tolerance in 208-pin PQFP package.
Input Processor
· Single RGB (24-bit) or Dual RGB (48-bit) input rates up to 100MHz.
· Support both non-interlaced and interlaced RGB graphic input signals..
· Compliant with digital LVDS/PanelLink TMDS input interface.
· PC input resolution up to XGA 1024x768 @85Hz.
Video Processor
· Independent programmable Horizontal and Vertical scaling up ratios from 1 to 32
· Built-in programmable gain control for white balance alignments.
· Built-in programmable 8-bit gamma correction table.
· Built-in programmable temporal color dithering.
· Built-in programmable interpolation look-up table.
· Support smooth panning under viewing window change.
Output Processor
· Single pixel (18/24-bit) or Dual pixel (36/48-bit) per clock digital RGB output.
· Built-in output timing generator with programmable clock and H/V sync.
· Support VGA/SVGA/XGA display resolution.
· Overlay input interface with external OSD controller.
· Double scan capability for interlaced input.

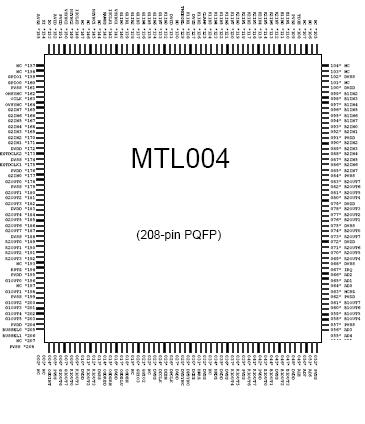

Pinout




Description

The MTL004 Flat Panel Display (FPD) Controller is an input format converter for TFT-LCD Monitor or LCD TV application which accepts 15-pin D-sub RGB graphic signals (through ADC), or digital RGB graphic signals from PanelLink TMDS receiver. MTL004 includes a RGB input processor, video scaling up processor, OSD input interface and output display processor in 208-pin PQFP.
