MTD214

Features:

· Compatible with IEEE 802.3 standards.
· Built-in UTP output waveform shaping function.
· Selectable media interface and auto-detection functions.
· Automatic polarity detection and correction.
· Link status output.
· Heartbeat disable/enable selection.
· Support full-duplex operation.
· Standard 802.3 AUI interface.
· Selectable controller interface.
· Low power consumption.

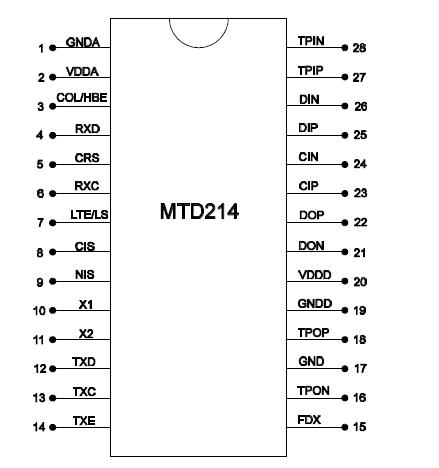

Pinout




Description

MTD214 contains integrated functions of the Ethernet encoder/decoder and UTP/AUI interface. The encoder/decoder conforms to IEEE 802.3 protocol and performance requirements while also retaining compatibility with most popular network controllers. The UTP transceiver has a built-in waveform shaping function thus eliminating the requirement of an external filter. The transceiver also contains the functions of automatic media selection and polarity correction. MTD214 is available in 28-pin plastic DIP (600mil) or SOJ (300mil) packages.
