Product Details

Description

Features:

·Constant-current chopping function (Off time fixed, self-oscillation)
·4-phase input (with inhibit for simultaneously turn ON)
·An ENABLE function is provided
·Protection for penetration current
·Built-in overheating protection (Alarm + shutdown)

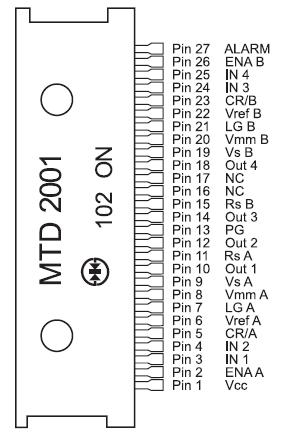

Pinout

Connection Diagram

Specifications

Item	Symbol	Ratings	Unit
Output Voltage	V_CEO(SUS)	60	V
Output Current	I_O	1.5	A
Logic Supply Voltage	V_CC	0~7	V
Logic Input Voltage	V_IN	0~V_CC	V
Total Power Dissipation	P_T	3	W
Junction Temperature	T_j	150
Storage Temperature	T_stg	-40~150
