MTD2005F

Motor / Motion / Ignition Controllers & Drivers Power IC

product image

MTD2005F Picture
See larger image
SeekIC No. : 00533990 Detail

MTD2005F: Motor / Motion / Ignition Controllers & Drivers Power IC

MTD2005F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MTD2005F
Mfg:
Shindengen
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Stepper Motor Controllers / Drivers Type : Stepper Motor Driver
Supply Current : 33 mA Mounting Style : SMD/SMT
Package / Case : HSOP-28 Packaging : Reel - 13 in

Description

Operating Supply Voltage :
Mounting Style : SMD/SMT
Product : Stepper Motor Controllers / Drivers
Package / Case : HSOP-28
Type : Stepper Motor Driver
Supply Current : 33 mA
Packaging : Reel - 13 in


Features:

·Constant-current chopping function (Frequency fixed, separate-oscillation)
·2-phase input (ENA input is useful for half step drive)
·Selectable slow/fast current decay for improved micro stepping
· A noise cancel function is provided (No externally attached filter needed)
·Protection for penetration current
·Built-in thermal alarm
·Built-in flywheel diodes


Pinout

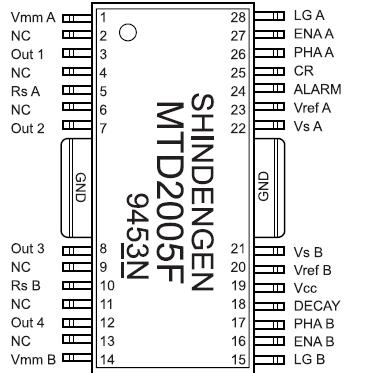

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Output Voltage
VCEO(SUS)
60
V
Output Current
IO
1.0
A
Logic Supply Voltage
VCC
0~6
V
Logic Input Voltage
VIN
0~VCC
V
Total Power Dissipation
PT
3
W
Junction Temperature
Tj
150
Storage Temperature
Tstg
-40~150
