MT88E45

Features: • Compatible with:• Bellcore GR-30-CORE, SR-TSV-002476, ANSI/TIA/EIA-716, TIA/EIA-777;• ETSI ETS 300 778-1 (FSK only variant) & -2;• BT (British Telecom) SIN227 & SIN242• Bellcore 'CPE Alerting Signal' (CAS), ETSI 'Dual Tone Alerting Signal' (DT-AS),...

product image

MT88E45 Picture
See larger image
SeekIC No. : 004430081 Detail

MT88E45: Features: • Compatible with:• Bellcore GR-30-CORE, SR-TSV-002476, ANSI/TIA/EIA-716, TIA/EIA-777;• ETSI ETS 300 778-1 (FSK only variant) & -2;• BT (British Telecom) SIN227...

MT88E45 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT88E45
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compatible with:
• Bellcore GR-30-CORE, SR-TSV-002476, ANSI/TIA/EIA-716, TIA/EIA-777;
• ETSI ETS 300 778-1 (FSK only variant) & -2;
• BT (British Telecom) SIN227 & SIN242
• Bellcore 'CPE Alerting Signal' (CAS), ETSI 'Dual Tone Alerting Signal' (DT-AS), BT Idle State and Loop State 'Tone Alert Signal' detection
• 1200 baud Bell 202 and CCITT V.23 FSK demodulation
• Separate differential input amplifiers with adjustable gain for Tip/Ring and telephone hybrid or speech IC connections
• Selectable 3-wire FSK data interface (bit stream or 1 byte buffer)
• Facility to monitor the stop bit for framing error check
• FSK Carrier detect status output
• 3 to 5V +/- 10% supply voltage
• Uses 3.579545 MHz crystal or ceramic resonator
• Low power CMOS with power down


Application

• Bellcore CID (Calling Identity Delivery) and CIDCW (Calling Identity Delivery on Call Waiting) telephones and adjuncts
• ETSI, BT CLIP (Calling Line Identity Presentation) and CLIP with Call Waiting telephones and adjuncts
• Fax and answering machines
• Computer Telephony Integration (CTI) systems


Pinout

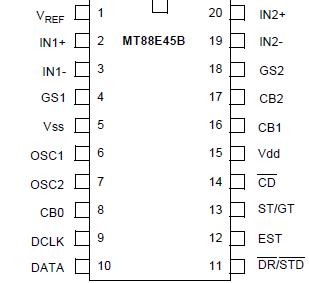

Connection Diagram


Specifications



Description

The MT88E45B is a low power CMOS integrated circuit suitable for receiving the physical layer signals used in North American (Bellcore) Calling Identity Delivery on Call Waiting (CIDCW) and Calling Identity Delivery (CID) services. It is also suitable for ETSI and BT Calling Line Identity Presentation (CLIP) and CLIP with Call Waiting services.

The MT88E45B contains a 1200 baud Bell 202/CCITT V.23 FSK demodulator and a CAS/DT-AS detector. Two input op-amps allow the MT88E45B to be connected to both Tip/Ring and the telephone hybrid or speech IC receive pair for optimal CIDCW telephone architectural implementation. FSK demodulation is always on Tip/Ring, while CAS detection can be on Tip/Ring or Hybrid Receive. Tip/Ring CAS detection of MT88E45 is required for the Bellcore/TIA Multiple Extension Interworking (MEI) and BT's on-hook CLIP. A selectable FSK data interface allows the data to be processed as a bit stream or extracted from a 1 byte on chip buffer. Power management has been incorporated to power down the FSK or CAS section when not required. Full chip power down is also available. The MT88E45B is suitable for applications using a fixed power source (with a +/-10% variation) between 3 and 5 V.
