Features:

• Microprocessor compatible control inputs
• On chip control memory and address decoding
• Row addressing
• Master reset
• 32 crosspoint switches in 8 x 4 array
• 5.0V to 15.0V operation
• Low crosstalk between switches
• Low on resistance: 90W (typ.) at 13V
• Matched switch characteristics
• Switches frequencies up to 40MHz


Application

• PABX and key sytems
• Data acquisition systems
• Test equipment/instrumentation
• Analog/digital multiplexers


Pinout

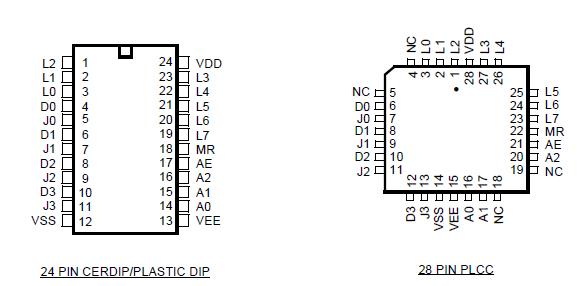

Connection Diagram


Specifications

Parameter Symbol Min Max
Units
1 Supply Voltage VDD-VSS
VDD-VEE
VSS-VEE		 -0.3
-0.3
-0.3		 16
16
16		 V
V
V
2 Analog Input Voltage VINA VEE-0.3 VDD+0.3 V
3 Digital Input Voltage VIN VSS-0.3 VDD+0.3 V
4 Current on any I/O Pin I 10 mA
5 Storage Temperature TS -65 +150
6 Package Power Dissipation PLASTIC DIP
CERDIP		 PD
PD
 0.6
1.2
 W
W



Description

The MT8804A is a CMOS/LSI 8 x 4 Analog Switch Array incorporating control memory (32 bits), decoder and digital logic level converters. This circuit has digitally controlled analog switches having very low "ON" resistance and very low "OFF" leakage current. Switches MT8804A will operate with analog signals at frequencies to 40 MHz and up to 15.0Vp-p. A "HIGH" on the Master Reset input switches all channels "OFF" and clears the memory. This MT8804A is ideal for crosspoint switching applications.
