MT8815

Features: • Internal control latches and address decoder• Short set-up and hold times• Wide operating voltage: 4.5V to 13.2V• 12Vpp analog signal capability• RON 65W max. @ VDD=12V, 25 • RON 10W @ VDD=12V, 25 • Full CMOS switch for low distortion• Mi...

product image

MT8815 Picture
See larger image
SeekIC No. : 004430057 Detail

MT8815: Features: • Internal control latches and address decoder• Short set-up and hold times• Wide operating voltage: 4.5V to 13.2V• 12Vpp analog signal capability• RON 65W ma...

MT8815 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT8815
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Internal control latches and address decoder
• Short set-up and hold times
• Wide operating voltage: 4.5V to 13.2V
• 12Vpp analog signal capability
• RON 65W max. @ VDD=12V, 25
• RON 10W @ VDD=12V, 25
• Full CMOS switch for low distortion
• Minimum feedthrough and crosstalk
• Separate analog and digital reference supplies
• Low power consumption ISO-CMOS technology


Application

• Key systems
• PBX systems
• Mobile radio
• Test equipment /instrumentation
• Analog/digital multiplexers
• Audio/Video switching


Pinout

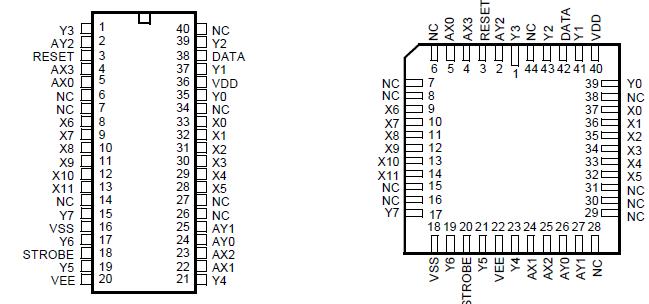

Connection Diagram


Specifications

Parameter Symbol Min Max
Units
1 Supply Voltage VDD
VSS		 -0.3
-0.3		 15.0
VDD+0.3		 V
V
2 Analog Input Voltage VINA -0.3 VDD+0.3 V
3 Digital Input Voltage VIN VSS-0.3 VDD+0.3 V
4 Current on any I/O Pin I ±15 mA
5 Storage Temperature TS -65 +150
6 Package Power Dissipation PLASTIC DIP
CERDIP		 PD
PD
 0.6
1.0
 W
W



Description

The Mitel MT8815 is fabricated in MITEL's ISOCMOS technology providing low power dissipation and high reliability. The device contains a 8 x 12 array of crosspoint switches along with a 7 to 96 line decoder and latch circuits. Any one of the 96 switches can be addressed by selecting the appropriate seven address bits. The selected switch MT8815 can be turned on or off by applying a logical one or zero to the DATA input. VSS  of MT8815 is the ground reference of the digital inputs. The range of the analog signal is from VDD to VEE.
