MT8814

Features: • Internal control latches and address decoder• Short set-up and hold times• Wide operating voltage: 4.5V to 13.2V• 12Vpp analog signal capability• RON 65W max. @ VDD=12V, 25 • DRON £ 10W @ VDD=12V, 25 • Full CMOS switch for low distortion&...

product image

MT8814 Picture
See larger image
SeekIC No. : 004430056 Detail

MT8814: Features: • Internal control latches and address decoder• Short set-up and hold times• Wide operating voltage: 4.5V to 13.2V• 12Vpp analog signal capability• RON 65W ma...

MT8814 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT8814
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Internal control latches and address decoder
• Short set-up and hold times
• Wide operating voltage: 4.5V to 13.2V
• 12Vpp analog signal capability
• RON 65W max. @ VDD=12V, 25
• DRON £ 10W @ VDD=12V, 25
• Full CMOS switch for low distortion
• Minimum feedthrough and crosstalk
• Separate analog and digital reference supplies
• Low power consumption ISO-CMOS technology


Application

• Key systems
• PBX systems
• Mobile radio
• Test equipment /instrumentation
• Analog/digital multiplexers
• Audio/Video switching


Pinout

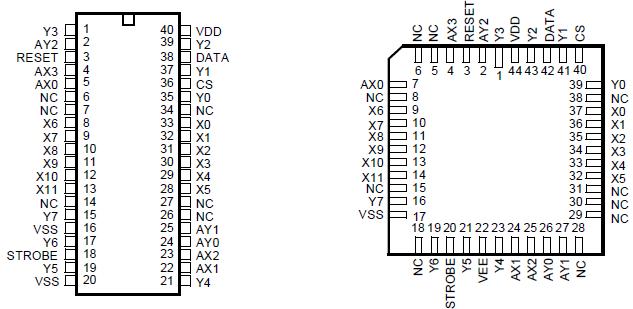

Connection Diagram


Specifications

Parameter Symbol Min Max
Units
1 Supply Voltage VDD
VSS		 -0.3
-0.3		 16.0
VDD+0.3		 V
V
2 Analog Input Voltage VINA -0.3 VDD+0.3 V
3 Digital Input Voltage VIN VSS-0.3 VDD+0.3 V
4 Current on any I/O Pin I ±15 mA
5 Storage Temperature TS -65 +150
6 Package Power Dissipation PLASTIC DIP
CERDIP		 PD
PD
 0.6

 W
W



Description

The Mitel MT8814 is fabricated in MITEL's ISOCMOS technology providing low power dissipation and high reliability. The device contains a 8 x 12 array of crosspoint switches along with a 7 to 96 line decoder and latch circuits. Any one of the 96 switches can be addressed by selecting the appropriate seven address bits. The selected switch MT8814 can be turned on or off by applying a logical one or zero to the DATA input. VSS is the ground reference of the digital inputs. The range of the analog signal is from VDD to VEE. Chip Select (CS) of MT8814 allows the crosspoint array to be cascaded for matrix expansion.
