MSM9893L

• Small page size : 2,112 bits per page (one-time write unit)
• Configuration : 2112 bits ´ 2048 pages
• Power supply voltage : Single 2.7 to 3.6 V
• Operating current : Supply current : Up to 35 mA
   : Stanby current : Up to 20 mA
• Operating temperature : 10 to +70°C
•Write Cycles : 10,000 cycles per page

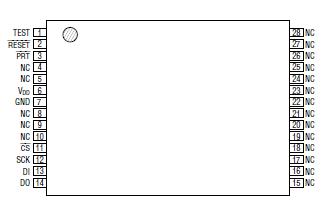

• Package: 28-pin plastic TSOP (TSOPI28-P-813-0.55-K) (Product name: MSM9893LTS-KT) 30-pin plastic SSOP (SSOP30-P-56-0.65-K) (Product name: MSM9893ALGS-KT)

The MSM9893L is a 4Mb flash memory that operates at 2.7 V to 3.6 V. Since backup is not needed, the number of pins is small, and the chip is contained in a small-package 28-pin TSOP or 30-pin SSOP, the MSM9893L is a flash memory suitable for applications such as handy terminals. In combination with Oki's recording/playback IC (MSM9888L/MSM9889L), a solid-state recording/ playback system can be easily constructed.
