MSM9000B-xx

Features: • Logic voltage(VDD): 2.5 to 3.3 V• LCD driving voltage(VBI) : 3.0 to 5.5 V• Low current consumption: 35 mA max.(operating)• Switchable between 8-bit serial interface and 8-bit parallel interface• Contains a 16-dot common driver and a 60-dot segment driver&#...

product image

MSM9000B-xx Picture
See larger image
SeekIC No. : 004429201 Detail

MSM9000B-xx: Features: • Logic voltage(VDD): 2.5 to 3.3 V• LCD driving voltage(VBI) : 3.0 to 5.5 V• Low current consumption: 35 mA max.(operating)• Switchable between 8-bit serial interfa...

MSM9000B-xx Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM9000B-xx
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Logic voltage(VDD): 2.5 to 3.3 V
• LCD driving voltage(VBI) : 3.0 to 5.5 V
• Low current consumption: 35 mA max.(operating)
• Switchable between 8-bit serial interface and 8-bit parallel interface
• Contains a 16-dot common driver and a 60-dot segment driver
• Contains CGROM with character fonts of (5 x 7 dots) x 256
• Built-in bias voltage generator circuit
• Built-in contrast adjusting circuit
• Built-in 32.768 kHz crystal oscillator circuit
• Provided with 120 dot arbitrators
• 1/9 duty mode (1 line : characters, 2 lines : arbitrators) 1/16 duty mode (2 lines : characters, 2 lines : arbitrators)
• Character blink operation can be switched between all-character lighting-on mode and allcharacter lighting-off mode.
• Package: TCP mounting with 35 mm wide film ; Tin-plated (Product name : MSM9000B-xx AV-Z-xx) Chip (Product name : MSM9000B-xx) xx indicates code number.


Pinout

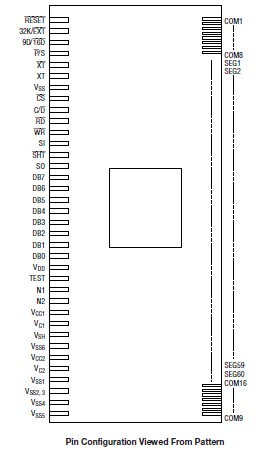

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Applicable pin
Power supply voltage
VDD
 Ta=25°C, VDDVSS 0.3 to +4.6
V
 VDD, VSS
Bias voltage
VBI
 Ta=25°C, VDDVSS5 0.3 to +7
V
 VDD, VSS5
Input voltage
VI
 Ta=25°C 0.3 to VDD + 0.3
V
 All input pins
Storage temperature
TSTG
 Chip 55 to +150
°C

TCP 30 to +85



Description

The MSM9000B-xx is a dot-matrix LCD control driver which has functions of displaying 12 (5 x 7 dots) characters (2 lines) and 120-dot arbitrators.

The MSM9000B-xx is provided with a 16-dot common driver, 60-dot segment driver, Display Data RAM (DDRAM), and Character Generator ROM (CGROM).

This MSM9000B-xx can be controlled with commands entered through the serial interface or parallel interface.

The font data of MSM9000B-xx in the CGROM can be changed by mask option. Since the MSM9000B-xx has an LCD driving bias generator circuit, LCD bias voltages can be obtained by merely providing a required capacitance externally.

The MSM9000B-xx is applicable to a variety of LCD panels by controlling the contrast.
