MSM9888L

• Voice analyzing and synthesizing system
   : 4-bit OKI ADPCM system8-bit OKI non-linear PCM system (for ROM playback only)
• Built-in 12-bit A/D•D/A converter
• Built-in LPF : Attenuation rate 40 dB/oct
• Sampling frequency (for 4.096 MHz of source oscillation frequency)
   : 2.0 kHz, 2.7 kHz, 3.2kHz, 4.0 kHz, 5.3 kHz, 6.4 kHz, 8 kHz
• External memory for variable message
   : 1Mb, 2Mb, 4Mb, 8Mb, serial voice flash memory
• Recording time (When the 1Mb serial voice flash is used)
  : Approximately 32 seconds (Fsam=8.0 kHz)
  : Approximately 40 seconds (Fsam=6.4 kHz)
  : Approximately 65 seconds (Fsam=4.0 kHz)
• Built-in 512Kb mask ROM for fixed message
• Playback time for fixed message
 : Approximately 15 seconds (Fsam=8.0 kHz)
 : Approximately 20 seconds (Fsam=6.4 kHz)
 : Approximately 31 seconds (Fsam=4.0 kHz)
• Number of pharase  Variable message : 63 phrases    Fixed message : 255 phrases
• Any data can be written to and read from a part in the voice flash memory.
• Serial microcontroller interface
• Source oscillation frequency : 4 MHz to 6 MHz
• Supply voltage : 2.7 V to 3.6 V
• Operating temperature : 10°C to 70°C

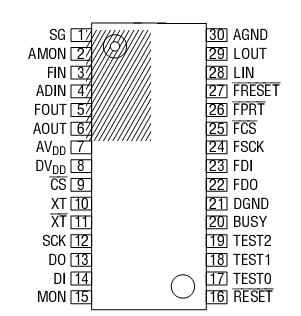

• Package : 30-pin plastic SSOP (SSOP30-P-56-0.65-K)(Product name : MSM9888LGS-AK)

The MSM9888L is a recording and playback IC that is controlled by the micro-controller in serial mode, compresses voice with the Oki ADPCM system with high tone quality, and directly stores voice data inthe serial voice flash momory. This IC MSM9888L can operate in a range of 2.7 to 3.6 V and contains a mask ROM. Since the package is small and backup is not needed, this recording and playback IC is suitable for the voice system such as handy terminals.
