MSM9225

Features: •Conforms to CAN protocol specification (Bosch Co., V.2.0 part b/Full CAN)•Maximum 1 Mbps real-time communication control (programmable)• Communication system: Transmission line is bi-directional, two-wire serial communications NRZ (Non-Return to Zero) system using bit ...

product image

MSM9225 Picture
See larger image
SeekIC No. : 004429214 Detail

MSM9225: Features: •Conforms to CAN protocol specification (Bosch Co., V.2.0 part b/Full CAN)•Maximum 1 Mbps real-time communication control (programmable)• Communication system: Transmissi...

MSM9225 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM9225
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Conforms to CAN protocol specification (Bosch Co., V.2.0 part b/Full CAN)
•Maximum 1 Mbps real-time communication control (programmable)
• Communication system:
     Transmission line is bi-directional, two-wire serial communications
     NRZ (Non-Return to Zero) system using bit stuff function
     Multi-master system
     Broadcast system
•Maximum 16 messages ×8 bytes of message buffer
     Number of messages can be extended by group message function (max: 2 groups)
• Priority control by identifier
     Normally 2032 types, 2032 × 218 types at extension
•Microcontroller interface
     Corresponding to both parallel and serial interface
         Parallel interface: separate address/data bus type (with address latch signal/no address latch signal) and
                                      multiplexed address/data bus type.
         Serial interface: Synchronous communication type
     Interrupt is used for three outputs: transmission/receive/error
• Error control:
     Bit error/stuff error/CRC error/form error/acknowledge error detection functions
     Retransmission / error status monitoring function when error occurs
• Communication control by transmission request function
• Sleep/Stop mode function
• Supply voltage: 5 V ±10%
• Operating temperature: -40 to +115°C
• Package: 44-pin plastic QFP (QFP44-P-910-0.80-2K) (Product name: MSM9225GA-2K)


Pinout

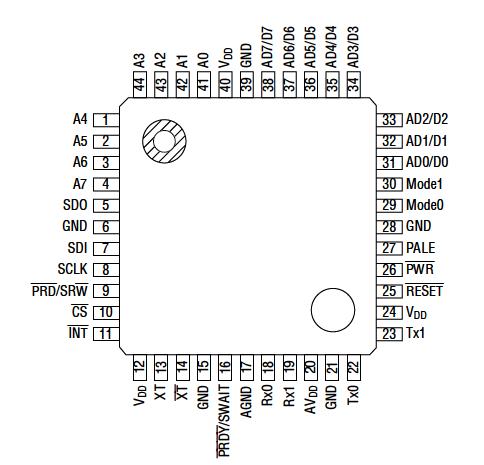

Connection Diagram


Specifications

Parameter Symbol Condition Ratings Unit
Power Supply Voltage VDD Ta = 25°C 0.3 to +7.0 V
AVDD 0.3 to +7.0
(AVDD = VDD)		 V
Input Voltage VI - 0.3 to VDD + 0.3 V
Output Voltage VO - 0.3 to VDD + 0.3 V
Power Dissipation PD Ta <25°C 615 mW
Operating Temperature TOP - 40 to +115 °C
Storage Temperature TSTG - 65 to +150 °C



Description

The MSM9225 is a microcontroller peripheral LSI which conforms to the CAN protocol for high-speed LANs in automobiles.
