Features:

• 41 segment outputs (when LED and output port are not used)
   A maximum of 123 segments can be dispalyed (MSM9006-01)
   A maximum of 164 segments can be displayed (MSM9006-02)
• One LED can be driven directly (IO=15mA max.)
• Up to five output ports are available (IO=2mA to +1mA)
• The state of up to 25 key switches can be read through the internal 5 x 5 keyscan circuit
• The interface with the CPU is a serial interface using LOAD, DATA I/O, and CLOCK
• Built-in RC oscillation circuit for LCD alternating current drive
• Built-in voltage dividing resistor for bias voltage generation
• Power supply voltage :  5V±10%
• Temperature range :  40 to +85°C
• Package:
  64-pin plastic QFP (QFP64-P-1414-0.80-BK)(Product name : MSM9006-01GS-BK)
                                (Product name : MSM9006-02GS-BK)

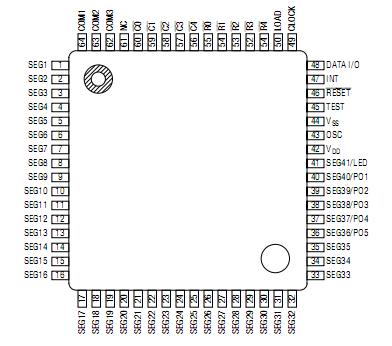

Pinout

  Connection Diagram

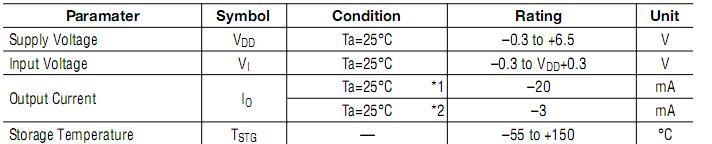

Specifications

  Connection Diagram


Description

The MSM9006-01 is an LCD driver for a 1/3 duty dynamic display.  It can directly drive an LCD with a maximum of 123 segments.

The MSM9006-02 is an LCD driver for a 1/4 duty dynamic display, and can directly drive an LCD with a maximum of 164 segments.

The MSM9006-01, -02 are capable of directly driving one LED, and up to five ports can be used by simply switching the LCD pin.

The internal 5 x 5 keyscan circuit MSM9006-01 enables keyboard input, decreasing the number of interconnections between the front panel and the CPU.
