Product Details

Description



Features:

• Logic power supply (VDD)                          : 2.5 to 5.5V
• LCD bias power supply (VBI)                     : 4.0 to 8.0V
• LCD output resistance
     Common driver (C1 to C8)                       : 6 k
     Segment driver (S1 to S65)                     : 18 k
• Display content
     Number of display characters                  : 13 characters, 1 line
     Arbitrator                                                 : 65 dots
• Display control functions
     Character blink                                        : Characters all on or all off can be selected
     Arbitrator blink                                        : 1-dot unit or 5-dot units can be selected
     All off setting possible
• 5 interfaces with microcomputer, CS, SI, SO, C/D and SHT (6 interfaces if RST is included)
• Internal character display ROM                 : 5 ` 7 dots ` 256 types (reprogrammable)
• Internal oscillation circuit                          : External R, C
• Package:
   100-pin plastic QFP (QFP 100-P-1420-0.65-BK)  (Product name: MSM9005-xxGS-BK)
   xx indicates code number.

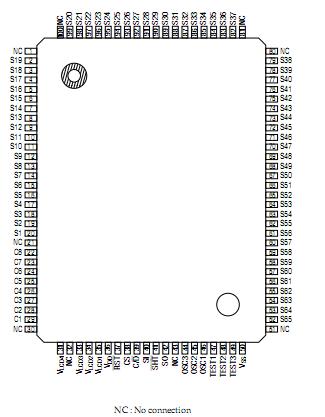

Pinout

  Connection Diagram

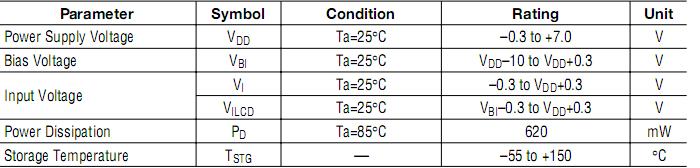

Specifications

  Connection Diagram




Description

The MSM9005-xx is a controller/driver which displays 13 alphanumerics and symbols (5x7 dots) and 65 arbitrators on a dot matrix LCD panel that has 8 common inputs and 65 segment inputs. Command and display data are written by 8-bit serial transfer.

A maximum of 256 types of alphanumerics and symbols of MSM9005-xx can be displayed using an internal character display ROM. The character display ROM is reprogrammable. The general purpose code is -01.
