MSM56V16800E

Features: •Silicon gate, quadruple polysilicon CMOS, 1-transistor memory cell•2-bank *1,048,576-word *8-bit configuration•3.3 V power supply, ±0.3 V tolerance•Input: LVTTL compatible•Output: LVTTL compatible•Refresh: 4096 cycles/64 ms•Programmable data tra...

product image

MSM56V16800E Picture
See larger image
SeekIC No. : 004428907 Detail

MSM56V16800E: Features: •Silicon gate, quadruple polysilicon CMOS, 1-transistor memory cell•2-bank *1,048,576-word *8-bit configuration•3.3 V power supply, ±0.3 V tolerance•Input: LVTTL co...

MSM56V16800E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM56V16800E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Silicon gate, quadruple polysilicon CMOS, 1-transistor memory cell
•2-bank *1,048,576-word *8-bit configuration
•3.3 V power supply, ±0.3 V tolerance
•Input: LVTTL compatible
•Output: LVTTL compatible
•Refresh: 4096 cycles/64 ms
•Programmable data transfer mode
  CAS  latency (1, 2, 3)
  Burst length (1, 2, 4, 8, full page)
  Data scramble (sequential, interleave)
•CBR auto-refresh, Self-refresh capability
•Package:
44-pin 400 mil plastic TSOP (Type II)(TSOPII44-P-400-0.80-K)  (Product : MSM56V16800E-xxTS-K)
                                                                                                  xx indicates speed rank.


Pinout

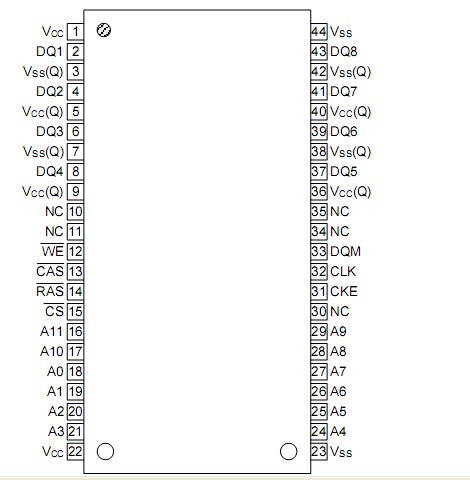

Connection Diagram

Connection Diagram




Specifications

Parameter
Symbol
Rating
Unit
Voltage on Any Pin Relative to VSS
VIN, VOUT
-0.5 to VCC +0.5
V
VCC Supply Voltage
VCC, VCCQ
-0.5 to 4.5
V
Storage Temperature
Tstg
-55 to 125
°C
Power Dissipation
PD*
600
mW
Short Circuit Current
IOS
50
mA
Operating Temperature
Topr
0 to 70
°C

*: Ta = 25°C




Description

The MSM56V16800E is a 2-bank ×1,048,576-word ×8-bit synchronous dynamic RAM, fabricated in Oki's CMOS silicon-gate process technology. The device operates at 3.3 V. The inputs and outputs are LVTTL compatible.
