Product Details

Description



Features:

Silicon gate , quadruple polysilicon CMOS , 1-transistor memory cell
2-bank *524,288-word *8bit configuration
3.3V power supply ± 0.3V tolerance
Input            : LVTTL compatible
Output         : LVTTL compatible
Refresh        : 4096 cycles/64 ms
Programmable data transfer mode
  -CAS Latency (1,2,3)
  - Burst Length (1,2,4,8,Full page)
  -Data scramble (sequential , interleave)
CBR auto-refresh, Self-refresh capability
Package:
  50-pin 400mil plastic TSOP (Type II)(TSOPII50-P-400-0.80-K)(Product : MSM56V16160F-xxTS-K)
                                                                                                           xx : indicates speed rank.


Pinout

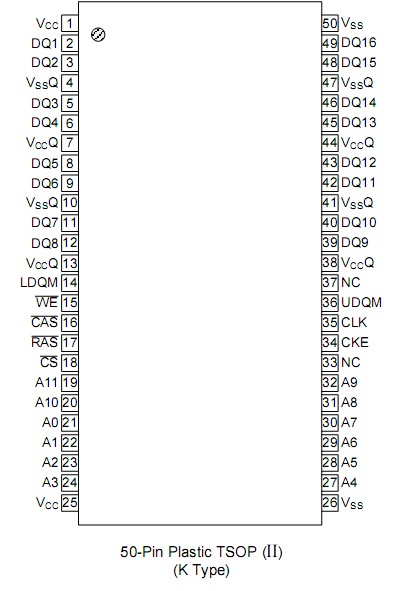

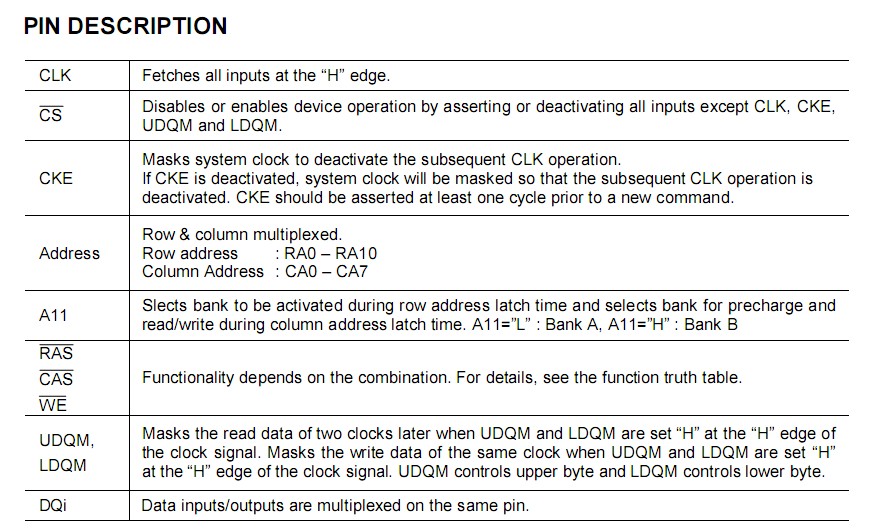

Connection Diagram

Connection Diagram




Specifications

Parameter
Symbol
Rating
Unit
Voltage on Any Pin Relative to VSS
VIN, VOUT
-0.5 to VCC +0.5
V
VCC Supply Voltage
VCC, VCCQ
-0.5 to 4.6
V
Storage Temperature
Tstg
-55 to 150
°C
Power Dissipation
PD*
600
mW
Short Circuit Current
IOS
50
mA
Operating Temperature
Topr
0 to 70
°C

*: Ta = 25°C




Description

The MSM56V16160F is a 2-Bank *524,288-word * 16 bit Synchronous dynamic RAM, fabricated in OKI's CMOS silicon-gate process technology. The device operates at 3.3V. The inputs and outputs are LVTTL compatible.
