MSM54V24632A

Features: • 131,072-words×32 bits×2 banks memory• Single 3.3 V±0.3 V power supply• LVTTL compatible inputs and outputs• All input signals are latched at rising edge of system clock• Auto precharge and controlled precharge• Internal pipelined operation: column ad...

product image

MSM54V24632A Picture
See larger image
SeekIC No. : 004428893 Detail

MSM54V24632A: Features: • 131,072-words×32 bits×2 banks memory• Single 3.3 V±0.3 V power supply• LVTTL compatible inputs and outputs• All input signals are latched at rising edge of system...

MSM54V24632A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM54V24632A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 131,072-words×32 bits×2 banks memory
• Single 3.3 V±0.3 V power supply
• LVTTL compatible inputs and outputs
• All input signals are latched at rising edge of system clock
• Auto precharge and controlled precharge
• Internal pipelined operation: column address can be changed every clock cycle
• Dual internal banks controlled by A9 (Bank Address: BA)
• Independent byte operation via DQM0 to DQM3
• Simplified function (No Block write, Write per bit, Single write and Burst stop)
• Programmable burst sequence (Sequential / Interleave)
• Programmable burst length (1, 2, 4, 8 and full page)
• Programmable CAS latency (1, 2 and 3)
• Power Down operation and Clock Suspend operation
• Auto refresh and Self refresh capability
•1,024 refresh cycle / 16 ms


Pinout

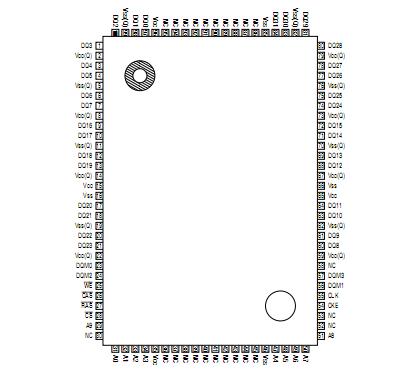

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Voltage on Any Pin Relative to VSS
VIN, VOUT
0.5 to 4.6
V
VCC Supply Voltage
VCC, VCCQ
0.5 to 4.6
V
Storage Temperature
Tstg
55 to 150
°C
Power Dissipation
PD*
1
W
Short Circuit Current
IOS
50
mA
Operating Temperature
Topr
0 to 70
°C




Description

The MSM54V24632A is a synchronous graphics random access memory without graphics oriented functions; Block Write, Write per bit, Single write and Burst stop. It is  organized as 128K words×32 bits× 2 banks.

This MSM54V24632A can operate up to 125MHz by using synchronous interface.
