Product Details

Description



Features:

• 262,144-word × 16-bit configuration
• Single 5.0 V power supply, ±0.5 V tolerance
• Input:    TTL compatible
• Output: TTL compatible, 3-state
• Refresh: 512 cycles/8 ms
• Fast page mode with EDO, read modify write capability
• Byte wide control: 2 CAS control
• CAS before RAS refresh, hidden refresh, RAS only refresh capability
• Package :
   44/40-pin 400 mil plastic TSOP (Type II) (TSOPII44/40-P-400-0.80-K) (Product : MSM5416258A-xxTS-K)
   xx indicates speed rank.


Pinout

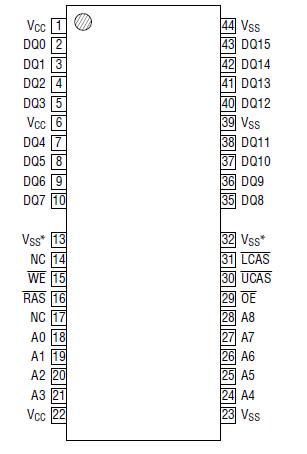

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Voltage on Any Pin Relative to VSS
VT
Ta = 25°C
1.0 to 7.0
V
Short Circuit Output Current
IOS
Ta = 25°C
50
mA
Power Dissipation
PD
Ta = 25°C
1
W
Operating Temperature
Topr
-
0 to 70
°C
Storage Temperature
Tstg
-
55 to 150
°C



Description

The MSM5416258A is a 262,144-word × 16-bit dynamic RAM fabricated in Oki's CMOS silicon gate technology. The MSM5416258A achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5416258A is available in a 44/40-pin plastic TSOP.
