MSM5416126A

Features: • Fast Page Mode with Extended Data Out• Byte wide control: 2CAS control• 131,072-word × 16-bit organization• Pin compatible with 2CAS type 256K ×16 DRAM• Single 5 V power supply, ±10% tolerance•CAS beforeRAS refresh, Hidden refresh,RAS only refresh ca...

product image

MSM5416126A Picture
See larger image
SeekIC No. : 004428866 Detail

MSM5416126A: Features: • Fast Page Mode with Extended Data Out• Byte wide control: 2CAS control• 131,072-word × 16-bit organization• Pin compatible with 2CAS type 256K ×16 DRAM• Sin...

MSM5416126A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM5416126A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast Page Mode with Extended Data Out
• Byte wide control: 2 CAS control
• 131,072-word × 16-bit organization
• Pin compatible with 2 CAS type 256K ×16 DRAM
• Single 5 V power supply, ±10% tolerance
• CAS before RAS refresh, Hidden refresh, RAS only refresh capability
• Refresh: 512 cycles/8 ms
• Package options:
  40-pin 400 mil plastic SOJ                        (SOJ40-P-400-1.27)                (Product : MSM5416126A-xxJS
  44/40-pin 400 mil plastic TSOP (Type II) (TSOPII44/40-P-400-0.80-K) (Product : MSM5416126A-xxTS-K)
                                                                                                               xx indicates speed rank.


Pinout

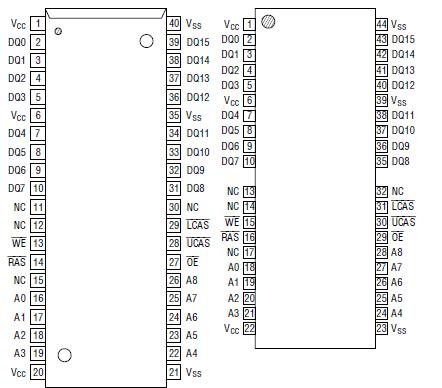

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Voltage on Any Pin Relative to VSS
VT
Ta = 25°C
1.0 to 7.0
V
Short Circuit Output Current
IOS
Ta = 25°C
50
mA
Power Dissipation
PD
Ta = 25°C
1
W
Operating Temperature
Topr
-
0 to 70
°C
Storage Temperature
Tstg
-
55 to 150
°C



Description

The OKI MSM5416126A is a 128K-word × 16-bit dynamic RAM fabricated in OKI's CMOS silicon gate technology. The MSM5416126A achieves high integration, high-speed operation, and lowpower consumption due to quadruple polysilicon double metal CMOS. The MSM5416126A has conventional two CAS type 256K × 16 DRAM compatible pinout. The MSM5416126A is available in a 40-pin plastic SOJ or 44/40-pin plastic TSOP.
