Product Details

Description



Features:

·Single 5.0V power supply
·1,048,576 words x 8-bit
·Access time
100ns MAX
·Input/Output TTL compatible
·Tri-State output configurations
·Internal powerdown function
Packages
  32-Pin plastic DIP        (DIP32-P-600-2.54)        (MSM538001E-XXRS)
  32-Pin plastic SOP       (SOP32-P-525-1.27-K)    (MSM538001E-XXGS-K)
  32-Pin plastic TSOP    (TSOP32-P-814-0.50-1K) (MSM538001E-XXTS-K)

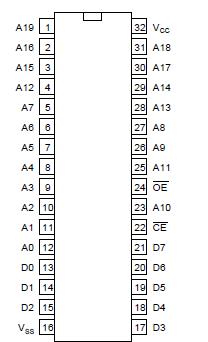

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Limits
Unit
VCC
 Power Supply Voltage
to VSS
0.3 to 7
V
VI
 Input Voltage
0.3 to VCC + 0.5
V
VO
 Output Voltage
0.3 to VCC + 0.5
V
PD
 Power Dissipation
Per Package Topr = 25°C
1.0
W
Topr
 Operating Temperature
-
0to70
ºC
Tstg
 Storage Temperature
-
-55to150
ºC



Description

The OKI MSM538001E is a high-speed silicon gate CMOS Mask ROM with 1,048,576-word x 8-bit capacity. The MSM538001E operates on a single 5.0V power supply and is TTL compatible. The MSM538001E's asynchronous I/O requires no external clock assuring easy operation. A power-down mode provides low power dissipation when the chip is not selected. The CE and OE pins are provided as control signals that permit three-stated output allowing easy memory expansion on a system bus. The MSM538001E is suited for use as large capacity fixed memory for microcomputers and data terminals.
