MSM534052E

Features: ·Single 5.0V power supply·262,144-words x 16-bit / 524,288-Bytes x 8-bit·8-words(A2,A1,A0) or 16-Bytes(A2,A1,A0,A-1) / Page·Access time 80ns Max (Normal access) 50ns Max (Page access)·Input/Output TTL compatible·Tri-State output configurations·Internal powerdown function·Packages: 40-PIN...

product image

MSM534052E Picture
See larger image
SeekIC No. : 004428856 Detail

MSM534052E: Features: ·Single 5.0V power supply·262,144-words x 16-bit / 524,288-Bytes x 8-bit·8-words(A2,A1,A0) or 16-Bytes(A2,A1,A0,A-1) / Page·Access time 80ns Max (Normal access) 50ns Max (Page access)·Inpu...

MSM534052E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM534052E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Single 5.0V power supply
·262,144-words x 16-bit / 524,288-Bytes x 8-bit
·8-words(A2,A1,A0) or 16-Bytes(A2,A1,A0,A-1) / Page
·Access time
    80ns Max (Normal access)
    50ns Max (Page access)
·Input/Output TTL compatible
·Tri-State output configurations
·Internal powerdown function
·Packages:
     40-PIN PLASTIC DIP         (DIP40-P-600-2.54)           (MSM534052E-xxRS)
     40-PIN PLASTIC SOP        (SOP40-P-525-1.27-K)       (MSM534052E-xxGS-AK)
     44-PIN PLASTIC TSOP      (TSOPII44-P-400-0.80-K)   (MSM534052E-xxTS-AK)
·Pin compatible OTP available

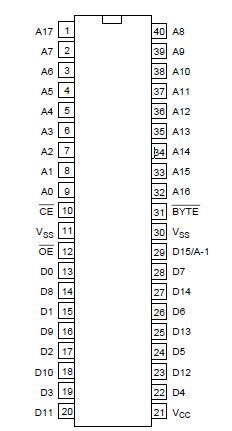

Pinout

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Power Supply Voltage VCC to VSS 0.3 to 7 V
Input Voltage VI 0.3 to VCC + 0.5 V
Output Voltage VO 0.3 to VCC + 0.5 V
Power Dissipation PD Per Package Topr = 25°C 1.0 W
Operating Temperature Topr - 0 to 70 °C
Storage Temperature TSTG - 55 to +150 °C



Description

The OKI MSM534052E is a 262,144-words x 16-bit or 1,048,576-Bytes x 8-bit CMOS Mask ROM with an asynchronous page read mode. Each page is organized 8 words x 16-bit or 16 words x 8-bit. MSM534052E operates on a single 5.0V power supply and is TTL compatible. The MSM534052E's asynchronous I/O requires no external clock assuring easy operation. A power-down mode provides low power dissipation when the chip is not selected. The CE and OE pins are provided as control signals that permit three-stated output allowing easy memory expansion on a system bus.The MSM534052E is suited for use as large capacity fixed memory for microcomputers and data terminals.
