MSM534032E

Features: `3.0V or 3.3V single power supply`262,144-words x 16-bit/524,288-words x 8-bit`Access timecurrent consumption 150ns15mA (3.0V±0.3V operation) 120ns20mA (3.3V±0.3V operation)`Tri-State output configurations`Internal powerdown function`Packages: 40-PIN PLASTIC DIP (DIP40-P-600-2.54) 40-PIN...

product image

MSM534032E Picture
See larger image
SeekIC No. : 004428855 Detail

MSM534032E: Features: `3.0V or 3.3V single power supply`262,144-words x 16-bit/524,288-words x 8-bit`Access timecurrent consumption 150ns15mA (3.0V±0.3V operation) 120ns20mA (3.3V±0.3V operation)`Tri-State outp...

MSM534032E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM534032E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`3.0V or 3.3V single power supply
`262,144-words x 16-bit/524,288-words x 8-bit
`Access timecurrent consumption
    150ns15mA (3.0V±0.3V operation)
    120ns20mA (3.3V±0.3V operation)
`Tri-State output configurations
`Internal powerdown function
`Packages:
     40-PIN PLASTIC DIP (DIP40-P-600-2.54)
     40-PIN PLASTIC SOP (SOP40-P-525-1.27-K)
     44-PIN PLASTIC TSOP (TSOPII44-P-400-0.80-K)
`4MEPROM (40-PIN) pin compatible


Pinout

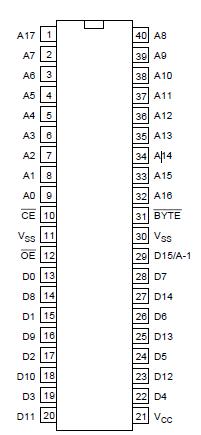

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Power Supply Voltage VCC to VSS 0.3 to 7 V
Input Voltage VI 0.3 to VCC + 0.5 V
Output Voltage VO 0.3 to VCC + 0.5 V
Power Dissipation PD Per Package Topr = 25°C 1.0 W
Operating Temperature Topr   0 to 70 °C
Storage Temperature TSTG   55 to +150 °C



Description

The OKI MSM534032E is a high-speed CMOS Mask ROM that can electrically switch between 262,144-word x 16-bit and 524,288-word x 8-bit configurations. The MSM534032E operates on a single 3.0V or 3.3V power supply but offers the same fast access times as products operating at 5.0V. The MSM534032E's applied byte system and pin compatibility with UV erasable EPROMs make it ideally suited as large capacity read-only memory for portable microcomputers and data terminal equipment. Optional products with 2.7V~5.5V operating parameters are also available.
