Product Details

Description



Features:

`Single 3.0V or 3.3V power supply
`524,288-words x 8-bit
`Access time-current consumption
      150ns-15mA (3.0V±0.3V operation)
      120ns-20mA (3.3V±0.3V operation)
`Tri-State output TTL compatible
`Internal powerdown function
`Packages:
      32-PIN PLASTIC DIP (DIP32-P-600-2.54)
      32-PIN PLASTIC SOP (SOP32-P-525-1.27-K)
      32-PIN PLASTIC TSOP (TSOP32-P-814-0.80-K)
`4MEPROM (32-PIN) pin compatible


Pinout

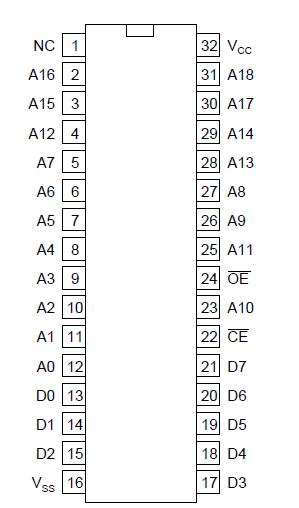

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Power Supply Voltage VCC to VSS 0.3 to 7 V
Input Voltage VI 0.3 to VCC + 0.5 V
Output Voltage VO 0.3 to VCC + 0.5 V
Power Dissipation PD Per Package Topr = 25°C 1.0 W
Operating Temperature Topr   0 to 70 °C
Storage Temperature TSTG   55 to +150 °C



Description

The OKI MSM534031E is a high-speed silicon gate CMOS Mask ROM with 524,288-word x 8-bit capacity. The MSM534031E operates on a single 3.0V or 3.3V power supply but offers the same fast access times as products that operate at 5.0V. The MSM534031E's 8-bit wide data path and pin compatibility with UV erasable EPROMs make it suited for use as large capacity fixed memory for portable microcomputers and data terminals.
