MSM533232E

Features: `3.0V or 3.3V single power supply`2,097,152-word x 16-bit / 4,194,304-word x 8-bit`Access TimeCurrent Consumption 200ns20mA @3.0V±10% operation 150ns30mA @3.0V±10% operation`Tri-state output configurations`Internal powerdown function`Package: 44-PIN PLASTIC SOP (SOP44-P-600-K) 48-PIN PLA...

product image

MSM533232E Picture
See larger image
SeekIC No. : 004428850 Detail

MSM533232E: Features: `3.0V or 3.3V single power supply`2,097,152-word x 16-bit / 4,194,304-word x 8-bit`Access TimeCurrent Consumption 200ns20mA @3.0V±10% operation 150ns30mA @3.0V±10% operation`Tri-state outp...

MSM533232E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM533232E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`3.0V or 3.3V single power supply
`2,097,152-word x 16-bit / 4,194,304-word x 8-bit
`Access TimeCurrent Consumption
   200ns20mA @3.0V±10% operation
   150ns30mA @3.0V±10% operation
`Tri-state output configurations
`Internal powerdown function
`Package:
   44-PIN PLASTIC SOP (SOP44-P-600-K)
   48-PIN PLASTIC TSOP (TSOP48-P-550-K)

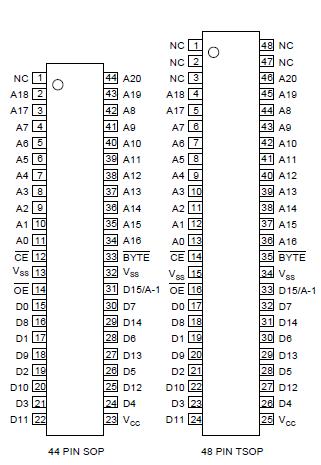

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Limits
Unit
VCC
 Power Supply Voltage
to VSS
0.3 to 7
V
VI
 Input Voltage
0.3 to VCC + 0.5
V
VO
 Output Voltage
0.3 to VCC + 0.5
V
PD
 Power Dissipation
Per Package Topr = 25°C
1.0
W
Topr
 Operating Temperature
-
0to70
ºC
Tstg
 Storage Temperature
-
-55to150
ºC



Description

The OKI MSM533232E is a high-speed CMOS Mask ROM that can electrically switch between 2,097,152-word x 16-bit or 4,194,304-word x 8-bit configurations. The MSM533232E operates on a single 3.0V or 3.3V power supply but offers the same fast access times as products operating at 5.0V. The MSM533232E make it suited as large capacity read-only memory for portable microcomputers and data terminal equipment.
