MSM531652F

Features: · Single 5.0V power supply - 1,048,576-words x 16-bit / 2,097,152-words x 8-bit· Access time 100ns MAX· Input/Output TTL compatible· Tri-State output configurations· Internal powerdown function· Packages: - 42-PIN PLASTIC DIP (MSM531602E-xxRS) (DIP42-P-600-2.45) - 44-PIN PLASTIC SOP (MSM...

product image

MSM531652F Picture
See larger image
SeekIC No. : 004428846 Detail

MSM531652F: Features: · Single 5.0V power supply - 1,048,576-words x 16-bit / 2,097,152-words x 8-bit· Access time 100ns MAX· Input/Output TTL compatible· Tri-State output configurations· Internal powerdown fun...

MSM531652F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM531652F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single 5.0V power supply
  - 1,048,576-words x 16-bit / 2,097,152-words x 8-bit
· Access time 100ns MAX
· Input/Output TTL compatible
· Tri-State output configurations
· Internal powerdown function
· Packages:
  - 42-PIN PLASTIC DIP  (MSM531602E-xxRS)  (DIP42-P-600-2.45)
  - 44-PIN PLASTIC SOP  (MSM531602E-xxGS-K)  (SOP44-P-600-1.27-K)
  - 48-PIN PLASTIC TSOP  (MSM531602E-xxTS-K)  (TSOP48-P-550-0.80-K)
· 16MEPROM (42-PIN) pin compatible


Pinout

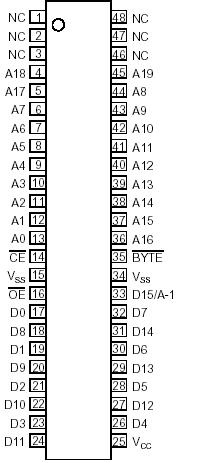

Connection Diagram


Specifications

Parameter Symbol Conditions Limits Unit
Power Supply Voltage VCC to VSS 0.3 to 7 V
Input Voltage VI 0.3 to VCC + 0.5 V
Output Voltage VO 0.3 to VCC + 0.5 V
Power Dissipation PD Per Package Topr = 25°C 1.0 W
Operating Temperature Topr - 0 to 70 °C
Storage Temperature Tstg - 55 to 150 °C



Description

The OKI MSM531652F is a 1,048,576-words x 16-bit or 2,097,152-bytes x 8-bit CMOS Mask ROM with an asynchronous page read mode. Each page is organized 16 words x 16- bit or 32bytes x 8-bit. MSM531652F operates on a single 5.0V power supply and is TTL compatible. The chip's asynchronous I/O requires no external clock assuring easy operation. A power-down mode provides low power dissipation when the chip is not selected. The CE and OE pins are provided as control signals that permit three-stated output allowing easy memory expansion on a system bus.The MSM531652F is suited for use as large capacity fixed memory for microcomputers and data terminals.
