MSM52V1016LL

• 65,536-word x 16-bit configuration
• Power supply voltage: 2.7 V to 3.6 V
• Fully static operation
• Operating temperature range: T_a = 0°C to 70°C
• (Input/Output) LVCMOS compatible
• 3-state output
• Data retention available at power supply voltage 2 V
• Package options:
  - 40-pin 525 mil plastic SOP (SOP40-P-525-1.27-K) (Product : MSM52V1016LL-xxGS-K)

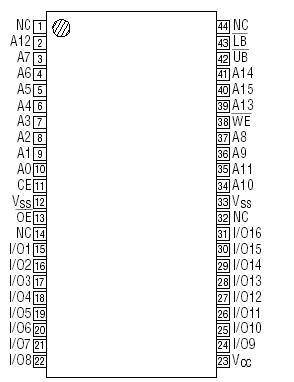

  - 44-pin 400 mil plastic TSOP (Type II) (TSOPII44-P-400-0.80-K) (Product : MSM52V1016LL-xxTS-K) (TSOPII44-P-400-0.80-L) (Product : MSM52V1016LL-xxTS-L) xx indicates speed rank.

The MSM52V1016LL is a 65,536-word by 16-bit CMOS static RAM featuring 2.7 V to 3.6 V power supply operation and direct LVCMOS input/output compatibility. Since the circuitry is completely static, external clock and refreshing operations are unnecessary, making this device very easy to use.

The MSM52V1016LL can be used in the high-speed operation of an access time 85 ns due to adopting a high-performance CMOS technology and in the very low current consumption of a standby current max. 20 A when there is no chip selection. In addition, the MSM52V1016LL is provided with a chip enable signal (CE) suited to the expansion of a memory capacity, an output enable signal (OE) suited to the I/O bus line control, and a byte select signal (LB, UB) that can independently control the input/output of a lower byte and an upper byte.
