MSM5259

Features: • Supply voltage : 3.5 to 6.0V (Dynamic display) : 2.5 to 6.0V (Static display)• LCD driving voltage : 2.5 to 6.0V (Static display)• Applicable LCD duty : 1/8 to 1/16• Interface with MSM6222-xx (Dot matrix LCD controller with 16-dot common driver and 40- dot segme...

product image

MSM5259 Picture
See larger image
SeekIC No. : 004428820 Detail

MSM5259: Features: • Supply voltage : 3.5 to 6.0V (Dynamic display) : 2.5 to 6.0V (Static display)• LCD driving voltage : 2.5 to 6.0V (Static display)• Applicable LCD duty : 1/8 to 1/16R...

MSM5259 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM5259
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply voltage                  : 3.5 to 6.0V (Dynamic display)
                                            : 2.5 to 6.0V (Static display)
• LCD driving voltage           : 2.5 to 6.0V (Static display)
• Applicable LCD duty          : 1/8 to 1/16
• Interface with MSM6222-xx (Dot matrix LCD controller with 16-dot common driver and 40- dot segment driver)
• Bias voltage can be supplied externally.
• Package options:
     56-pin plastic QFP (QFP56-P-910-0.65-K) (Product name : MSM5259GS-K)
     56-pin plastic QFP (QFP56-P-910-0.65-L2) (Product name : MSM5259GS-L2)
     56-pin plastic QFP (QFP56-P-910-0.65-2K) (Product name : MSM5259GS-2K)
     56-pin plastic QFP (QFP56-P-910-0.65-2L2) (Product name : MSM5259GS-2L2)


Pinout

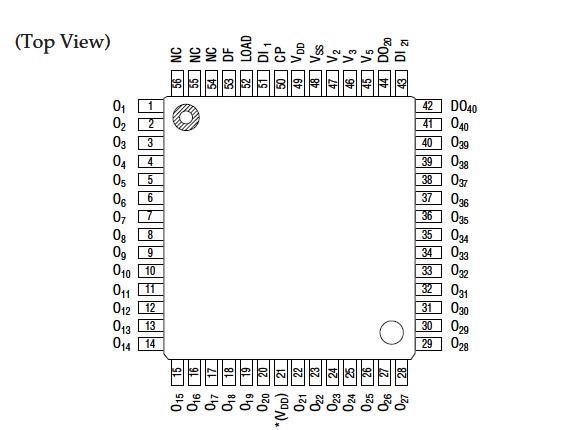

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Supply Voltage (1) VDD Ta = 25°C 0.3 to +6.5 V
Supply Voltage (2) VDD V5    *1 0 to 16.5 V
Input Voltage VI 0.3 to VDD +0.3 V
Storage Temperature TSTG - 55 to +150 °C



Description

The MSM5259 is a dot matrix LCD segment driver which is fabricated using low power CMOS metal gate technology. This LSI consists of 40-bit shift register, 40-bit latch and 40-bit 4-level driver.

It converts serial data, which is received from an LCD controller LSI, to parallel data and outputs LCD driving waveforms to LCD.

Expansion of the display can be easily made according to the number and structure of characters. Since the 40-bit shift register of this device consists of two 20-bit shift registers, it is possible to allot bits efficiently according to the number of characters.

The MSM5259 can drive a variety of LCD panels because the bias voltage, which determines the LCD driving voltage, can be optionally supplied from the external source. For static operation only, the device is available with a power supply voltage of 2.5V or more.
