MSM5238

Features: • Supply voltage : 3 to 7V• LCD driving voltage : 3 to 16V• Applicable LCD duty : 1/32 to 1/64 (1/64 duty is available when MSM5238s are cascade-connected)• Bias voltage can be supplied externally.• Applicable segment driver: MSM5839B/C (40 outputs)• P...

product image

MSM5238 Picture
See larger image
SeekIC No. : 004428817 Detail

MSM5238: Features: • Supply voltage : 3 to 7V• LCD driving voltage : 3 to 16V• Applicable LCD duty : 1/32 to 1/64 (1/64 duty is available when MSM5238s are cascade-connected)• Bias vo...

MSM5238 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM5238
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply voltage          : 3 to 7V
• LCD driving voltage   : 3 to 16V
• Applicable LCD duty   : 1/32 to 1/64
   (1/64 duty is available when MSM5238s are cascade-connected)
• Bias voltage can be supplied externally.
• Applicable segment driver: MSM5839B/C (40 outputs)
• Package options:
     44-pin plastic QFP (QFP44-P-910-0.80-K) (Product name: MSM5238GS-K)
     44-pin plastic QFP (QFP44-P-910-0.80-L2) (Product name: MSM5238GS-L2)
     44-pin plastic QFP (QFP44-P-910-0.80-2K) (Product name: MSM5238GS-2K)


Pinout

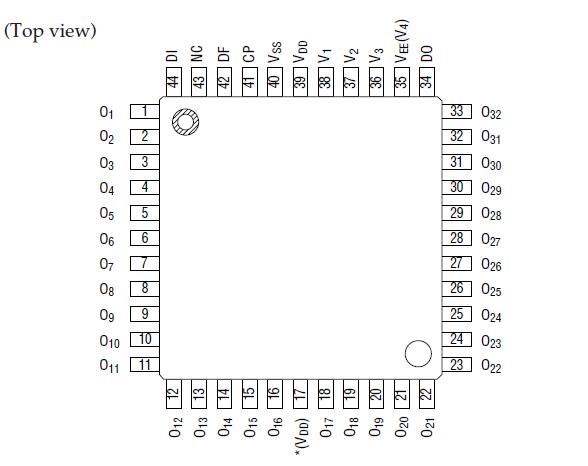

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Supply Voltage VDD Ta = 25°C 3.0 to +7 V
Supply Voltage VLCD Ta = 25°C, VDDVEE 0 to 16.5 V
Input Voltage VI Ta = 25°C 0.3 to VDD V
Storage Temperature TSTG - 55 to +150 °C



Description

The MSM5238 is a dot matrix LCD common driver LSI which is fabricated using low power CMOS metal gate technology. The scanning signal in one matrix display frame can be divided into up to 1/32 duty. This LSI consists of 32-bit shift register, 32-bit level shifter and 32-bit 4-level driver.

This LSI can drive a variety of LCD panels because the bias voltage, which determines the LCD driving voltage, can be optionally supplied from an external source.
