Product Details

Description



Features:

• 1,048,576-word ×16-bit configuration
• Single 3.3 V power supply, ±0.3 V tolerance
• Input    : LVTTL compatible, low input capacitance
• Output  : LVTTL compatible, 3-state
• Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (SL version)
• Fast page mode with EDO, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• CAS before RAS self-refresh capability (SL version)
• Package options:
    42-pin 400 mil plastic SOJ                (SOJ42-P-400-1.27) (Product : MSM51V18165D/DSL-xxJS)
    50/44-pin 400 mil plastic TSOP        (TSOPII50/44-P-400-0.80-K) (Product : MSM51V18165D/DSL-xxTS-K)
                                                                                                          xx indicates speed rank.

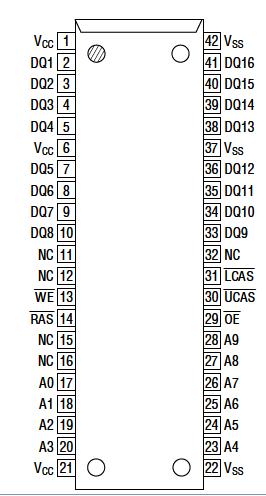

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Voltage on Any Pin Relative to VSS VT 0.5 to 4.6 V
Short Circuit Output Current IOS 50 mA
Power Dissipation PD* 1 W
Operating Temperature Topr 0 to 70 °C
Storage Temperature Tstg 55 to 150 °C
*: Ta = 25°C


Description

The MSM51V18165D/DSL is a 1,048,576-word ´ 16-bit dynamic RAM fabricated in Oki's silicongate CMOS technology. The MSM51V18165D/DSL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/ double-layer metal CMOS process. The MSM51V18165D/DSL is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP. The MSM51V18165DSL (the self-refresh version) is specially designed for lower-power applications.
