Product Details

Description



Features:

· 1,048,576-word ´ 16-bit configuration
· Single 3.3V power supply, ±0.3V tolerance
· Input : LVTTL compatible, low input capacitance
· Output : LVTTL compatible, 3-state
· Refresh : 1024 cycles/16ms
· Fast page mode, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· CAS before RAS self-refresh capability
· Package options: 42-pin 400mil plastic SOJ (SOJ42-P-400-1.27) (Product : MSM51V18160F-xxJS) 50/44-pin 400mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM51V18160F-xxTS-K) (TSOPII50/44-P-400-0.80-L) (Product : MSM51V18160F-xxTS-L) xx indicates speed rank.


Pinout

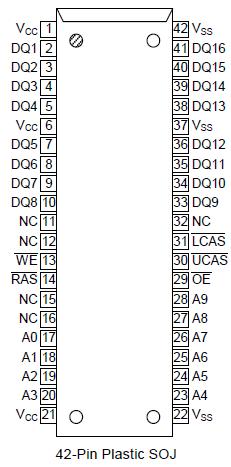

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Voltage on Any Pin Relative to VSS VIN, VOUT - 0.5 to VCC + 0.5 V
Voltage VCC Supply relative to VSS VCC 0.5 to 4.6 V
Short Circuit Output Current IOS 50 mA
Power Dissipation PD* 1 W
Operating Temperature Topr 0 to 70
Storage Temperature Tstg 55 to 150



Description

The MSM51V18160F is a 1,048,576-word ´ 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V18160F achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM51V18160F is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.
