MSM51V17805B

Features: • 2,097,152-word ×8-bit configuration• Single 3.3 V power supply, ±0.3 V tolerance• Input : LVTTL compatible, low input capacitance• Output : LVTTL compatible, 3-state• Refresh : 2048 cycles/32 ms, 2048 cycles/128 ms (SL version)• Fast page mode with E...

product image

MSM51V17805B Picture
SeekIC No. : 004428785 Detail

MSM51V17805B: Features: • 2,097,152-word ×8-bit configuration• Single 3.3 V power supply, ±0.3 V tolerance• Input : LVTTL compatible, low input capacitance• Output : LVTTL compatible, 3-st...

floor Price/Ceiling Price

Part Number:
MSM51V17805B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2,097,152-word ×8-bit configuration
• Single 3.3 V power supply, ±0.3 V tolerance
• Input     : LVTTL compatible, low input capacitance
• Output  : LVTTL compatible, 3-state
• Refresh : 2048 cycles/32 ms, 2048 cycles/128 ms (SL version)
• Fast page mode with EDO, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• CAS before RAS self-refresh capability (SL version)
• Multi-bit test mode capability
• Package options:
       28-pin 400 mil plastic SOJ (SOJ28-P-400-1.27) (Product : MSM51V17805B/BSL-xxJS)
       28-pin 400 mil plastic TSOP (TSOPII28-P-400-1.27-K) (Product : MSM51V17805B/BSL-xxTS-K)
                                                                                           xx indicates speed rank.

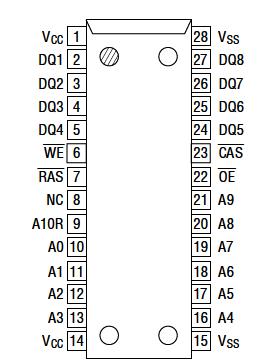

Pinout

  Connection Diagram


Specifications

Parameter Symbol Rating Unit
Voltage on Any Pin Relative to VSS VT 0.5 to 4.6 V
Short Circuit Output Current IOS 50 mA
Power Dissipation PD* 1 W
Operating Temperature Topr 0 to 70 °C
Storage Temperature Tstg 55 to 150 °C
*: Ta = 25°C


Description

The MSM51V17805B/BSL is a 2,097,152-word ´ 8-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V17805B/BSL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/ double-layer metal CMOS process. The MSM51V17805B/BSL is available in a 28-pin plastic SOJ or 28-pin plastic TSOP. The MSM51V17805BSL (the self-refresh version) is specially designed for lower-power applications.
