Product Details

Description

Features:

4,194,304-word * 4-bit configuration
Single 3.3V power supply,± 0.3V tolerance
Input: LVTTL compatible, low input capacitance
Output: LVTTL compatible, 3-state
Refresh: 2048 cycles/32ms
Fast page mode with EDO, read modify write capability
CAS before RAS refresh, hidden refresh, RAS-only refresh capability
Packages
26/24-pin 300mil plastic SOJ (SOJ26/24-P-300-1.27) (Product : MSM51V17405F-xxSJ)
26/24-pin 300mil plastic TSOP (TSOPII26/24-P-300-0.80-K) (Product : MSM51V17405F-xxTS-K)

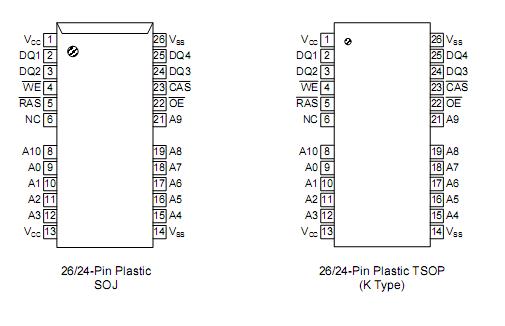

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Voltage VCC Supply relative to V_SS	V_T	0.5 to 4.6	V
Short Circuit Output Current	I_OS	50	mA
Power Dissipation	P_D	1	W
Operating Temperature	T_opr	0 to 70	°C
Storage Temperature	T_stg	55 to 150	°C

Description

The MSM51V17405F is a 4,194,304-word * 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V17405F achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM51V17405F is available in a 26/24-pin plastic SOJ or 26/24-pin plastic TSOP.
