Product Details

Description



Features:

• 2,097,152-word × 8-bit configuration
• Single 3.3 V power supply, ±0.3 V tolerance
• Input : LVTTL compatible, low input capacitance
• Output : LVTTL compatible, 3-state
• Refresh : 4096 cycles/64 ms, 4096 cycles/128 ms (SL version)
• Fast page mode with EDO, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• CAS before RAS self-refresh capability (SL version)
• Multi-bit test mode capability
• Package options:
28-pin 400 mil plastic SOJ (SOJ28-P-400-1.27) (Product : MSM51V16805B/BSL-xxJS)
28-pin 400 mil plastic TSOP (TSOPII28-P-400-1.27-K) (Product : MSM51V16805B/BSL-xxTS-K)
xx indicates speed rank.


Pinout

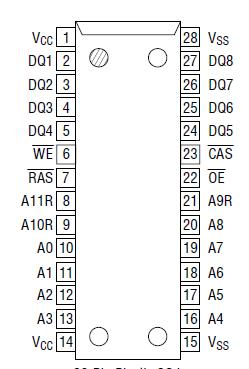

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Voltage on Any Pin Relative to VSS VT 0.5 to 4.6 V
Short Circuit Output Current IOS 50 mA
Power Dissipation PD* 1 W
Operating Temperature Topr 0 to 70 °C
Storage Temperature Tstg 55 to 150 °C
*: Ta = 25°C


Description

The MSM51V16805B/BSL is a 2,097,152-word ´ 8-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V16805B/BSL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/ double-layer metal CMOS process. The MSM51V16805B/BSL is available in a 28-pin plastic SOJ or 28-pin plastic TSOP. The MSM51V16805BSL (the self-refresh version) is specially designed for lower-power applications.
