MSM51V16405D/DSL

Features:

• 4,194,304-word ´ 4-bit configuration
• Single 3.3 V power supply, ±0.3 V tolerance
• Input : LVTTL compatible, low input capacitance
• Output : LVTTL compatible, 3-state
• Refresh : 4096 cycles/64 ms, 4096 cycles/128 ms (SL version)
• Fast page mode with EDO, read modify write capability
• CASbefore RAS refresh, hidden refresh, RAS-only refresh capability
• CAS before RASself-refresh capability (SL version)
• Multi-bit test mode capability
• Package options:
  26/24-pin 300 mil plastic SOJ      (SOJ26/24-P-300-1.27) (Product : MSM51V16405D/DSL-xxSJ)
  26/24-pin 300 mil plastic TSOP     (TSOPII26/24-P-300-1.27-K) (Product : MSM51V16405D

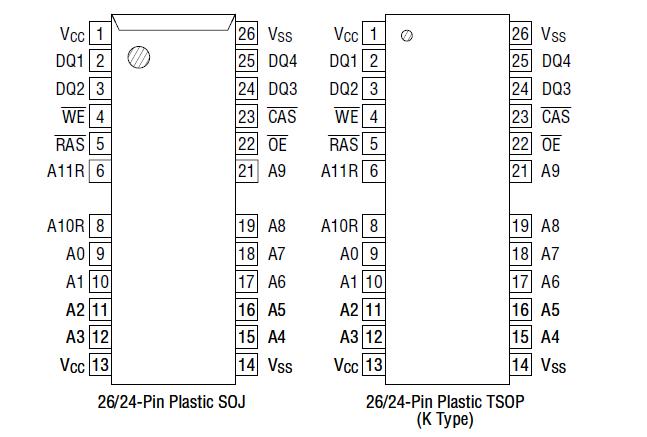

Pinout




Specifications

Parameter	Symbol	Rating	Unit
Voltage on Any Pin Relative to VSS	VT	0.5 to 4.6	V
Short Circuit Output Current	IOS	50	mA
Power Dissipation	PD*	1	W
Operating Temperature	Topr	0 to 70	°C
Storage Temperature	Tstg	55 to 150	°C

Description

The MSM51V16405D/DSL is a 4,194,304-word ´ 4-bit dynamic RAM fabricated in Oki's silicon-gateCMOS technology. The MSM51V16405D/DSL achieves high integration, high-speed operation,and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM51V16405D/DSL is available in a 26/24-pin plastic SOJor 26/24-pin plastic TSOP. The MSM51V16405DSL (the self-refresh version) is specially designedfor lower-power applications.
