MSM514400D

Features: · 1,048,576-word × 4-bit configuration· Single 5 V power supply, ±10% tolerance· Input : TTL compatible, low input capacitance· Output : TTL compatible, 3-state· Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (L-version)· Fast page mode, read modify write capability· CAS before RAS refr...

product image

MSM514400D Picture
See larger image
SeekIC No. : 004428741 Detail

MSM514400D: Features: · 1,048,576-word × 4-bit configuration· Single 5 V power supply, ±10% tolerance· Input : TTL compatible, low input capacitance· Output : TTL compatible, 3-state· Refresh : 1024 cycles/16 m...

MSM514400D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM514400D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 1,048,576-word × 4-bit configuration
· Single  5 V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (L-version)
· Fast page mode, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Multi-bit test mode capability
· Package options:
    26/20-pin 300 mil plastic SOJ   (SOJ26/20-P-300-1.27)         (Product : MSM514400D/DL-xxSJ)
    20-pin 400 mil plastic ZIP         (ZIP20-P-400-1.27)               (Product : MSM514400D/DL-xxZS)
    26/20-pin 300 mil plastic TSOP (TSOPII26/20-P-300-1.27-K) (Product : MSM514400D/DL-xxTS-K)
                                                                                                                    xx indicates speed rank.


Pinout

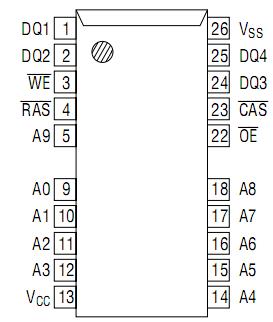

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Voltage on Any Pin Relative to VSS
VT
1.0 to 7.0
V
Short Circuit Output Current
IOS
50
mA
Power Dissipation
PD*
1
W
Operating Temperature
Topr
0 to 70
Storage Temperature
Tstg
55 to 150



Description

The MSM514400D/DL is a 1,048,576-word × 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM514400D/DL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/single-layer metal CMOS process. The MSM514400D/DL is available in a 26/20-pin plastic SOJ, 20-pin plastic ZIP, or 26/20-pin plastic TSOP. The MSM514400DL (the low-power version) is specially designed for lower-power applications.
