MSM5118165D

Features: · 1,048,576-word × 16-bit configuration· Single 5 V power supply, ±10% tolerance· Input : TTL compatible, low input capacitance· Output : TTL compatible, 3-state· Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (SL version)· Fast page mode with EDO, read modify write capability· CAS befo...

product image

MSM5118165D Picture
See larger image
SeekIC No. : 004428716 Detail

MSM5118165D: Features: · 1,048,576-word × 16-bit configuration· Single 5 V power supply, ±10% tolerance· Input : TTL compatible, low input capacitance· Output : TTL compatible, 3-state· Refresh : 1024 cycles/16 ...

MSM5118165D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM5118165D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 1,048,576-word × 16-bit configuration
· Single  5 V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (SL version)
· Fast page mode with EDO, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· CAS before RAS self-refresh capability (SL version)
· Package options:
    42-pin 400 mil plastic SOJ         (SOJ42-P-400-1.27)              (Product : MSM5118165D/DSL-xxJS)
    50/44-pin 400 mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM5118165D/DSL-xxTS-K)
                                                     (TSOPII50/44-P-400-0.80-L) (Product : MSM5118165D/DSL-xxTS-L)
                                                                                                                        xx indicates speed rank.

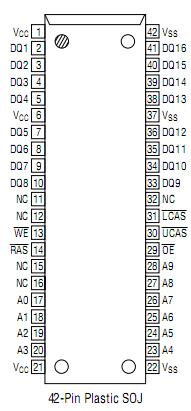

Pinout




Specifications

Parameter
Symbol
Rating
Unit
Voltage on Any Pin Relative to VSS
VIN, VOUT
0.5 to VCC + 0.5
V
Voltage on VCC Supply Relative to VSS
VCC
0.5 to 7
V
Short Circuit Output Current
IOS
50
mA
Power Dissipation
PD*
1
W
Operating Temperature
Topr
0 to 70
Storage Temperature
Tstg
55 to 150



Description

The MSM5118165D/DSL is a 1,048,576-word × 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5118165D/DSL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5118165D/DSL is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.  The MSM5118165DSL (the self-refresh version) is specially designed for lower-power applications.
