MSM5118160F

Features: · 1,048,576-word × 16-bit configuration· Single 5V power supply, ±10% tolerance· Input : TTL compatible, low input capacitance· Output : TTL compatible, 3-state· Refresh : 1024 cycles/16ms· Fast page mode, read modify write capability·CASbefore RASrefresh, hidden refresh, RAS-only refres...

product image

MSM5118160F Picture
See larger image
SeekIC No. : 004428713 Detail

MSM5118160F: Features: · 1,048,576-word × 16-bit configuration· Single 5V power supply, ±10% tolerance· Input : TTL compatible, low input capacitance· Output : TTL compatible, 3-state· Refresh : 1024 cycles/16ms...

MSM5118160F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM5118160F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 1,048,576-word × 16-bit configuration
· Single 5V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 1024 cycles/16ms
· Fast page mode, read modify write capability
· CASbefore RAS refresh, hidden refresh, RAS-only refresh capability
· Packages
  42-pin 400mil plastic SOJ            (SOJ42-P-400-1.27)                (Product : MSM5118160F-xxJS)
  50/44-pin 400mil plastic TSOP (TSOPII50/44-P-400-0.80-K)  (Product : MSM5118160F-xxTS-K)


Pinout

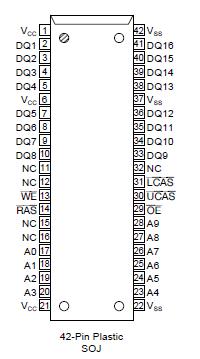

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on Any Pin Relative to VSS
VIN, VOUT
0.5 to VCC+ 0.5
V
Voltage VCC Supply relative to VSS
VCC
0.5 to 7
V
Short Circuit Output Current
IOS
50
mA
Power Dissipation
PD*
1
W
Operating Temperature
Topr
0 to 70
°C
Storage Temperature
Tstg
55 to 150
°C



Description

The MSM5118160F is a 1,048,576-word * 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5118160F achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process.
The MSM5118160F is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.
