MSM5118160B

· 1,048,576-word × 16-bit configuration
· Single  5 V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 1024 cycles/16 ms
· Fast page mode, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Package options:

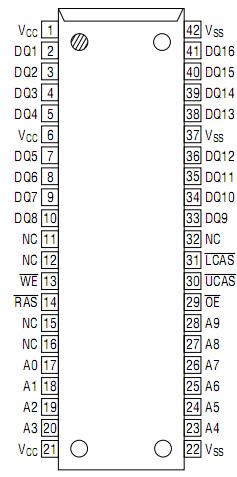

    42-pin 400 mil plastic SOJ         (SOJ42-P-400-1.27)              (Product : MSM5118160B-xxJS)
    50/44-pin 400 mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM5118160B-xxTS-K)
                                                     (TSOPII50/44-P-400-0.80-L) (Product : MSM5118160B-xxTS-L)
                                                                                                                xx indicates speed rank.

The MSM5118160B is a 1,048,576-word × 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5118160B achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5118160B is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.
