MSM5117800D

· 2,097,152-word × 8-bit configuration
· Single 5V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 2048 cycles/32 ms
· Fast page mode, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Multi-bit test mode capability

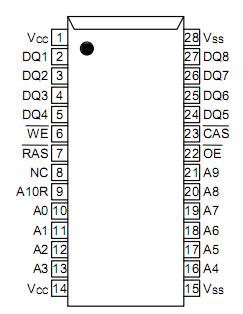

· Package options:
    28-pin 400mil plastic SOJ   (SOJ28-P-400-1.27)          (Product : MSM5117800D-xxJS)
    28-pin 400mil plastic TSOP (TSOPII28-P-400-1.27-K) (Product : MSM5117800D-xxTS-K)
                                               (TSOPII28-P-400-1.27-L) (Product : MSM5117800D-xxTS-L)
                                                                                                   xx : indicates speed rank.

The MSM5117800D is a 2,097,152-word  * 8-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5117800D achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5117800D is available in a 28-pin plastic SOJ, 28-pin plastic TSOP.
