MSM5117800C

· 2,097,152-word × 8-bit configuration
· Single  5 V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 2048 cycles/32 ms
· Fast page mode, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Multi-bit test mode capability
· Package options:

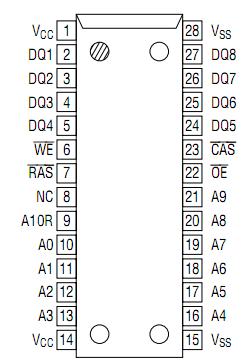

    28-pin 400 mil plastic SOJ   (SOJ28-P-400-1.27)          (Product : MSM5117800C-xxJS)
    28-pin 400 mil plastic TSOP (TSOPII28-P-400-1.27-K) (Product : MSM5117800C-xxTS-K)
                                                (TSOPII28-P-400-1.27-L) (Product : MSM5117800C-xxTS-L)
                                                                                                      xx indicates speed rank.

The MSM5117800C is a 2,097,152-word × 8-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5117800C achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5117800C is available in a 28-pin plastic SOJ or 28-pin plastic TSOP.
