MSM5117400D

• 4,194,304-word × 4-bit configuration
• Single 5V power supply, ±10% tolerance
• Input : TTL compatible, low input capacitance
• Output : TTL compatible, 3-state
• Refresh : 2048 cycles/32 ms
• Fast page mode, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• Multi-bit test mode capability
• Package options:

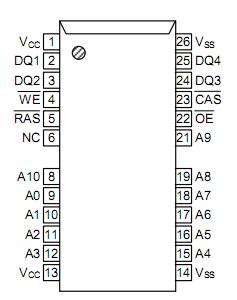

   26/24-pin 300mil plastic SOJ   (SOJ26/24-P-300-1.27)          (Product : MSM5117400D-xxSJ)
   26/24-pin 300mil plastic TSOP (TSOPII26/24-P-300-1.27-K) (Product : MSM5117400D-xxTS-K)
                                                                                                            xx : indicates speed rank.

The MSM5117400D is a 4,194,304-word  * 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5117400D achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5117400D is available in a 26/24-pin plastic SOJ, 26/24-pin plastic TSOP.
