Product Details

Description



Features:

• 65,536-word x 16-bit configuration
• Single 5 V power supply, ±10% tolerance
• Input : TTL compatible, low input capacitance
• Output : TTL compatible, 3-state
• Refresh : 256 cycles/4 ms, 256 cycles/32 ms (L-version)
• Byte write and fast page mode with EDO, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• Package options:
   - 40-pin 400 mil plastic SOJ (SOJ40-P-400-1.27) (Product : MSM511666C/CL-xxJS)
   - 44/40-pin 400 mil plastic TSOP (TSOPII44/40-P-400-0.80-K) (Product : MSM511666C/CL-xxTS-K) xx indicates speed rank.




Pinout

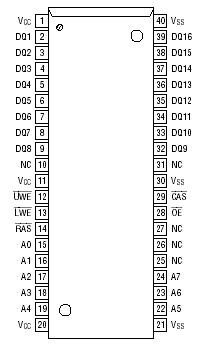

  Connection Diagram


Specifications

Item Symbol Rating Unit
Voltage on any pin relative to Vss VT -1.0 to +7.0 V
Short circuit current IOS 50 mA
Power dissipation PD* 1 W
Operating temperature Topr 0 to 70 °C
Storage temperature Tstg - 55 to 150 °C

*: Ta=25°C




Description

The MSM511666C/CL is a 65,536-word x 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM511666C/CL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/single-layer metal CMOS process. The MSM511666C/CL is available in a 40-pin plastic SOJ or 44/40-pin plastic TSOP. The MSM511666CL (the low-power version) is specially designed for lower-power applications.
