Product Details

Description



Features:

· 1,048,576-word × 16-bit configuration
· Single  5 V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 4096 cycles/64 ms, 4096 cycles/128 ms (SL version)
· Fast page mode with EDO, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· CAS before RAS self-refresh capability (SL version)
· Package options:
    42-pin 400 mil plastic SOJ         (SOJ42-P-400-1.27)              (Product : MSM5116165D/DSL-xxJS)
    50/44-pin 400 mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM5116165D/DSL-xxTS-K)
                                                     (TSOPII50/44-P-400-0.80-L) (Product : MSM5116165D/DSL-xxTS-L)
                                                                                                                         xx indicates speed rank.

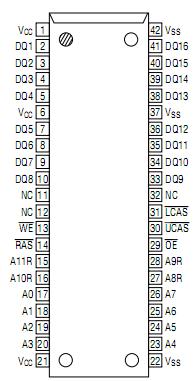

Pinout

  Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Voltage on Any Pin Relative to VSS
VIN, VOUT
0.5 to VCC + 0.5
V
Voltage on VCC Supply Relative to VSS
VCC
0.5 to 7
V
Short Circuit Output Current
IOS
50
mA
Power Dissipation
PD*
1
W
Operating Temperature
Topr
0 to 70
Storage Temperature
Tstg
55 to 150



Description

The MSM5116165D/DSL is a 1,048,576-word × 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5116165D/DSL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5116165D/DSL is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.  The MSM5116165DSL (the self-refresh version) is specially designed for lower-power applications.
