MSC7171

Features: • Logic supply voltage : 5 V• Driver supply voltage : 65 V• Driver output current - IOH: 50 mA (Only one driver output is in the high state) - IOL: 100 A• Directly connectable to VF display tube: no pull-down resistor required• Data transfer cycle : 5 MHz...

product image

MSC7171 Picture
See larger image
SeekIC No. : 004427979 Detail

MSC7171: Features: • Logic supply voltage : 5 V• Driver supply voltage : 65 V• Driver output current - IOH: 50 mA (Only one driver output is in the high state) - IOL: 100 A• Directly ...

MSC7171 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSC7171
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Logic supply voltage : 5 V
• Driver supply voltage : 65 V
• Driver output current
   - IOH: 50 mA (Only one driver output is in the high state)
   - IOL: 100 A
• Directly connectable to VF display tube: no pull-down resistor required
• Data transfer cycle : 5 MHz
• Brightness control through DUTY pin
• Low-current mode can be set with STANDBY pin
• Package:
   - 24-pin plastic SOP (SOP24-P-430-1.27-K)(Product name: MSC7171GS-K)


Pinout

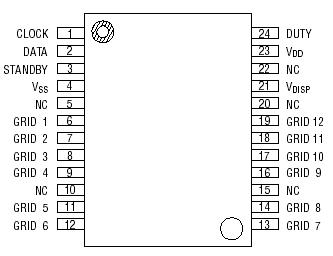

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Logic Supply Voltage VDD Applicable to logic power pin 0.3 to 6.5 *1 V
Driver Supply Voltage VDISP Applicable to driver power pin 0.3 to 70 *1, 2 V
Input Voltage VIN Applies to all inputs 0.3 to VDD+0.3 *1 V
Power Dissipation PD Ta25 790 mW
Package Thermal Resistance Rj-a \ 158 *3 °C/W
Storage Temperature TSTG - 55 to 150 °C

Notes: *1 Voltage for logic with respect to VSS
*2 Stresses beyond the "Absolute Maximum Ratings" may cause permanent damage to the device.
*3 Thermal resistance of the package (between junction and atmosphere) The junction temperature (Tj) expressed by the equation below must not exceed 150°C. Tj=P ¥ Rja + Ta (P: Maximum power consumption of IC)




Description

The MSC7171 is a driver IC designed to directly drive the grids of fluorescent display tube. It contains a 12-bit shift register and 12 output drivers.

Display data is serially written into the internal 12-bit shift register on the rising edge of each clock pulse.

By setting the DUTY pin to "L", all driver outputs go "L". Blanking can be set using this function.

By setting the STANDBY pin to "H", all driver outputs go "L" and the MSC7171 enters the low current mode.
