MSC7110-01

Features: • Provides the interface with a microcontroller by three signal lines. : DATA IN, CLOCK, and LOAD• Driver output can directly be connected to a vaccum fluorescent display tube without a pull-down resistor.• Display is turned on by dynamic drive mode.• The number o...

product image

MSC7110-01 Picture
SeekIC No. : 004427971 Detail

MSC7110-01: Features: • Provides the interface with a microcontroller by three signal lines. : DATA IN, CLOCK, and LOAD• Driver output can directly be connected to a vaccum fluorescent display tube ...

floor Price/Ceiling Price

Part Number:
MSC7110-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Provides the interface with a microcontroller by three signal lines. : DATA IN, CLOCK, and LOAD
• Driver output can directly be connected to a vaccum fluorescent display tube without a pull-down resistor.
• Display is turned on by dynamic drive mode.
• The number of display digits are programmable in the range of : 1 to 12 digits (MSC7112-01) 1 to 16 digits (MSC7110-01)
• 12-segment driver output : 16 driver outputs (MSC7112-01) 12 driver outputs (MSC7110-01)
• The LED drivers can turn on 5 outputs statically.
• RAM data can directly be displayed.
• The brightness adjustment is programmable and brightness can be adjusted every 1/15 step.
• Built-in power-on-reset circuit
• The vacuum fluorescent display tube driver outputs high withstand voltage : VDD-VEE=45V (max).
• Logic supply voltage : VDD=5V ±10%
• Package options:
    42-pin plastic SDIP (SDIP42-P-600-1.778) : (Product name : MSC7112-01SS)
    44-pin plastic QFP (QFP44-P-910-0.80-2K) : (Product name : MSC7110-01GS-2K/MSC7112-01GS-2K)




Pinout

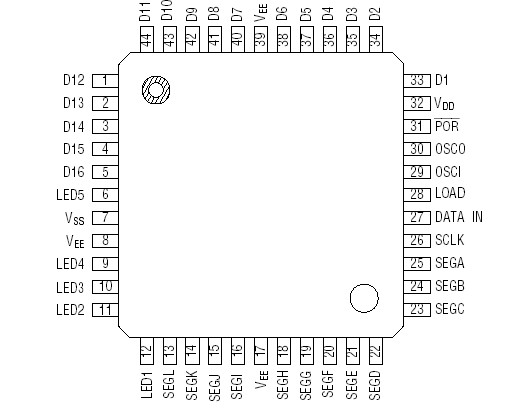

  Connection Diagram


Specifications

Parameter
Symbol
Condition
Unit
Range
Supply Voltage (1)
VDD
-
0.3 to +6.5
V
Supply Voltage (2)
VDD-VEE
-
0 to 50
V
Input Voltage
VI
-
0.3 to VDD+0.3
V
Power Dissipation
PD
Ta£25°C
to 500
mW
Storage Temperature
TSTG
-
55 to +150
°C
Output Current
IO1
All DIGIT output
10
mA
IO2
All SEG output
60
mA
IO3
LED1-LED5
20
mA



Description

The MSC7110-01/MSC7112-01 is a display controller to display the timer of video tape recorder, channel operation, and other infomaiton by a vaccum fluorescent display tube. Display data is input by serial transfer from microcontroller.
