MSC7128-xx

Features: • Logic supply voltage (VDD) :+5V• VF driver supply voltage (VEE) :55V• Driver output current VF grid driver :30mA VF anode driver :2mA VF cursor driver :10mA• Direct drive capability for vacuum fluorescent display (no pull-down resistor is required)• Built-...

product image

MSC7128-xx Picture
See larger image
SeekIC No. : 004427974 Detail

MSC7128-xx: Features: • Logic supply voltage (VDD) :+5V• VF driver supply voltage (VEE) :55V• Driver output current VF grid driver :30mA VF anode driver :2mA VF cursor driver :10mA• Dire...

MSC7128-xx Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSC7128-xx
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Logic supply voltage (VDD) :+5V
• VF driver supply voltage (VEE) :55V
• Driver output current
VF grid driver :30mA
VF anode driver :2mA
VF cursor driver :10mA
• Direct drive capability for vacuum fluorescent display (no pull-down resistor is required)
• Built-in oscillation circuit
• Built-in power-on-reset circuit with external C
• Serial host interface (data in, clock, chip select)
• Serial data input for 8-bit control and display data words
• Command functions
On/off duty cycle : 0/16 to 15/16
Character display position : 0 to 15
Number of display digits :1 to 16
Display modes : PLA mode, and Lamp Test mode
• Built-in 35 x 128-bit PLA-type character generator
Character font :5 ´ 7
Number of characters :128
Programmable PLA code
• Package options:
64-pin plastic SDIP (SDIP64-P-750-1.78) (Product name : MSM7128-xxSS)
64-pin plastic QFP (QFP64-P-1420-1.00-BK) (Product name : MSM7128-xxGS-BK)
xx indicates the code number.


Pinout

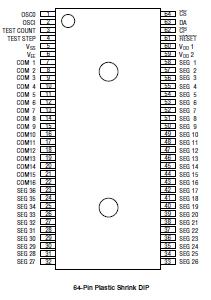

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Power Supply Voltage (1) VDDVSS - 0.3 to +6.5 V
Power Supply Voltage (2) VDDVEE - 0 to 65 V
Input Voltage VINVSS - 0.3 to VDD + 0.3 V
Power Dissipation PD Ta 25 Up to 1.0 W
Storage Temperature TSTG - 55 to +150
Output Current IO1 COM1 to COM16 -40 mA
IO2 SEG1 to SEG35 -4 mA
IO3 SEG36 -15 mA



Description

The MSC7128-xx is a general purpose display controller for vacuum fluorescent display tube.

The MSC7128-xx drives displays with up to 35 anodes (dots) and up to 16 grids (characters) plus a cursor.

The controller accepts command and display data input words on a clocked serial input line.

Commands control the on/off duty cycle, starting character position, number of characters to display and display modes (PLA mode and Lamp Test mode). An internal PLA-type character generator provides character decoding and dot pattern generation for the full 128 characters.

A 35 ´ 128-bit PLA (ROM) code is programmable.
