MSC5301B-02

Features:

• LCD driving voltage range                                  : 6 to 16V
• Operating power supply voltage range              : 5V ±10%
• Display duty                                                        : 1/8 (1/4 bias)
• Common output                                                  : 8 outputs
• Segment output                                                  : 64 outputs
• RAM capacity                                                       : 8 x 64 = 512 bits
• Serial transfer clock frequency (fSCK)                 : 500 kHz Max.
• Multichip configuration available
• Blanking available
• Built-in RC oscillation circuit
• Package:
        100-pin plastic QFP (QFP100-P-1420-0.65-BK) (Product name: MSC5310B-02GS-BK)

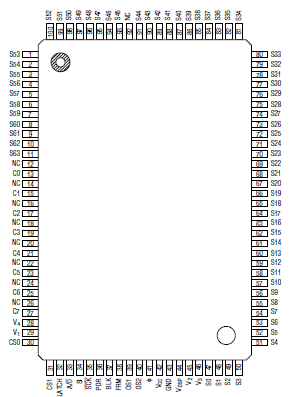

Pinout




Specifications

Parameter	Symbol	Condition	Rating	Unit
Power Supply Voltage	VCC	Ta = 25°C	0.3 to +6.5	V
Power Supply Voltage	VDSP	Ta = 25°C	0.3 to +18.0 *1	V
Input Voltage	VIN	Ta = 25°C	0.3VVINVCC+0.3	V
Input Voltage	VINDP	Ta = 25°C	0.3VINDPVDSP+0.3	V
Power Dissipation	PD	Ta = 85°C	275	mW
Storage Temperature	TSTG	-	55 to +125	°C

*1 VDSP>V1>V2³V3>V4>GND


Description

The MSC5301B-02 is an LCD driver LSI with a built-in RAM. The device's bit mapping method offers greater flexibility in which each bit of the display RAM controls each section on the LCD panel. It can form a graphic display system of 64 x 8 dots in one chip. In addition, the display can be expanded by using the additional LSIs.
