MSC5301B-01

Features:

• LCD driving voltage range                               :6 to 16V
• Operating power supply voltage range           : 5V ±10%
• Display duty                                                     : 1/16 (1/5 bias)
• Common output                                               : 16 outputs
• Segment output                                               : 64 outputs
• RAM capacity                                                    : 16 x 64 = 1024 bits
• Serial transfer clock frequency (fSCK)              : 500 kHz Max.
• Multichip configuration available
• Blanking available
• Built-in RC oscillation circuit
• Package:
        100-pin plastic QFP (QFP100-P-1420-0.65-BK) (Product name: MSC5301B-01GS-BK)

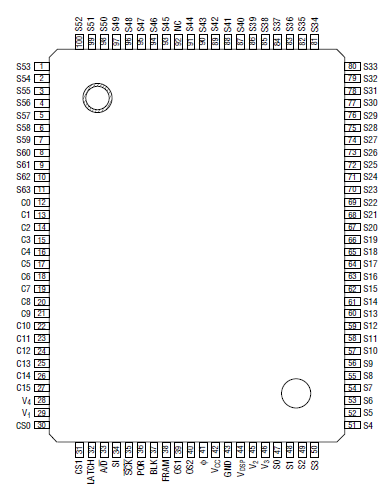

Pinout

Specifications

Parameter	Symbol	Condition	Rating	Unit
Power Supply Voltage	VCC	Ta = 25°C	0.3 to +6.5	V
Power Supply Voltage	VDSP	Ta = 25°C	0.3 to +18.0 *1	V
Input Voltage	VIN	Ta = 25°C	0.3V£VIN£VCC+0.3	V
Input Voltage	VINDP	Ta = 25°C	0.3£VINDP£VDSP+0.3	V
Power Dissipation	PD	Ta = 85°C	275	mW
Storage Temperature	TSTG	-	55 to +125	°C

*1 VDSP>V1>V2>V3>V4>GND



Description

The MSC5301B-01 is an LCD driver LSI with built-in RAM. The MSC5301B-01's bit mapping method offers greater flexibility because each bit of the RAM for display controls each section on the LCD panel. It can form a graphic display system of 64 x 16 dots in one chip. In addition, the display can be expanded by using additional LSIs.
