MSC1937-01

Features: • Can display up to 16 digits with either 14 or 16 segments plus comma/point.• The number of display digits is programmable within 16.• The brightness adjustment is programmable by 1/32 step.• The display contents can be changed at any digit.• Built-in PLA (...

product image

MSC1937-01 Picture
See larger image
SeekIC No. : 004427839 Detail

MSC1937-01: Features: • Can display up to 16 digits with either 14 or 16 segments plus comma/point.• The number of display digits is programmable within 16.• The brightness adjustment is progr...

MSC1937-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSC1937-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Can display up to 16 digits with either 14 or 16 segments plus comma/point.
• The number of display digits is programmable within 16.
• The brightness adjustment is programmable by 1/32 step.
• The display contents can be changed at any digit.
• Built-in PLA (64 types of ASCII characters (capital letters only) can be displayed).
• Executable in 1-byte instruction format
• Drive capability
      Output current       : Up to 20 mA (Digit)
                                                10 mA (Segment) : Plastic DIP
                                                5 mA (Segment) : Plastic QFP
      Withstand voltage : 58V
• Can also be used for LED.
• Pin compatible with 10937 manufactured by Rockwell.
• Supply voltage : 5V ± 10%
• Package options:
      40-pin plastic DIP (DIP40-P-600-2.54) (Product name: MSC1937-01RS)
      44-pin plastic QFP (QFP44-P-910-0.80-K) (Product name: MSC1937-01GS-K)


Pinout

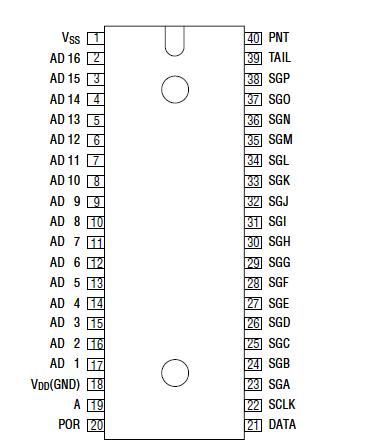

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power Supply Voltage VSS 0.3 to +6.5 V
Input Voltage VIN 0.3 to VSS + 0.3 V
Output Voltage VGG VSS 58 to VSS + 0.3 V
Output Current ILOAD Digit 25 mA
Segment DIP 20
QFP 10
Storage Temperature TSTG 55 to +150 °C



Description

MSC1937-01 is a Bi-CMOS alphanumeric display controller designed to interface with either vacuum fluorescent display.

MSC1937-01 can drive displays with up to 16 digits with either 14 or 16 segments plus a decimal point and comma.

MSC1937-01 provides the interface with the microcomputer only by two signal lines: DATA and SCLK.
